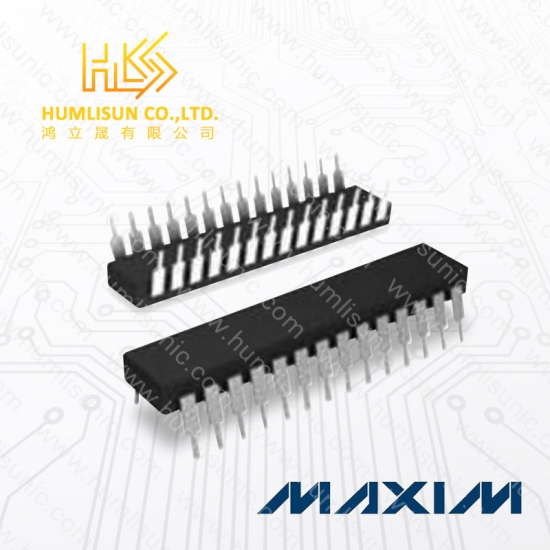

Part No .:
MAX307CPI+Manufacturer:
Maxim IntegratedDescription:
ICRemark:
new originLast Updated:
2026/01/04
|
Physical
|
|
| Case/Package | PDIP |
| Mount | Through Hole |
| Number of Pins | 28 |
|
Technical
|
|
| Dual Supply Voltage | 9 V |
| Logic Function | Multiplexer |
| Max Dual Supply Voltage | 20 V |
| Max Operating Temperature | 70 °C |
| Max Power Dissipation | 727 mW |
| Max Supply Voltage | 30 V |
| Min Dual Supply Voltage | 4.5 V |
| Min Operating Temperature | 0 °C |
| Min Supply Voltage | 5 V |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| On-State Resistance | 175 Ω |
| Operating Supply Current | 500 µA |
| Operating Supply Voltage | 28 V |
| Propagation Delay | 300 ns |
| Supply Type | Single , Dual |
| Turn-Off Delay Time | 300 ns |
| Turn-On Delay Time | 600 ns |
|
Dimensions
|
|
| Height | 4.45 mm |
| Length | 37.34 mm |
| Width | 14.61 mm |
|
Compliance
|
|
| Lead Free | Lead Free |
| REACH SVHC | Unknown |
| Radiation Hardening | No |
| RoHS | Compliant |
