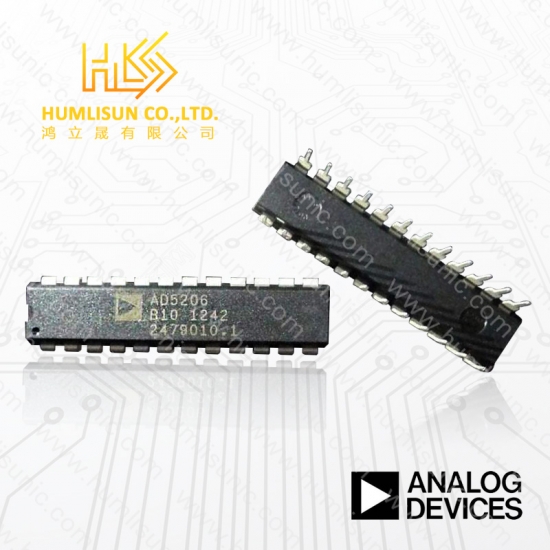

AD5206B10/AD5206

AD5206B10/AD5206

  • Part No .:

    AD5206B10/AD5206
  • Manufacturer:

    Analog Devices
  • Description:

    IC
  • Remark:

    new origin
  • Last Updated:

    2019/12/14
  • Product Details

Data sheet


Physical
Case/Package SOIC W
Contact Plating Tin
Mount Surface Mount
Number of Pins 24
Technical
-3db Bandwidth 721 kHz
Composition Potentiometer
Dual Supply Voltage 2.5 V
Interface SPI
Max Dual Supply Voltage 2.7 V
Max Operating Temperature 85 °C
Max Supply Current 12 µA
Max Supply Voltage 5.5 V
Memory Type Volatile
Min Dual Supply Voltage 2.3 V
Min Operating Temperature -40 °C
Min Supply Voltage 2.7 V
Nominal Supply Current 12 µA
Number of Circuits 6
Number of Elements 6
Number of Positions 256
Number of Taps 256
Operating Supply Current 12 µA
Quiescent Current 12 µA
Resistance 50 kΩ
Taper Linear
Temperature Coefficient 700 ppm/°C
Tolerance 30%
Dimensions
Height 2.65 mm
Length 15.6 mm
Width 7.6 mm
Compliance
Lead Free Contains Lead
REACH SVHC No SVHC
RoHS Compliant


The AD5204/AD5206 provide 4-/6-channel, 256-position digitally controlled variable resistor (VR) devices. These devices perform the same electronic adjustment function as a potentiometer or variable resistor. Each channel of the AD5204/ AD5206 contains a fixed resistor with a wiper contact that taps the fixed resistor value at a point determined by a digital code loaded into the SPI-compatible serial-input register. The resistance between the wiper and either endpoint of the fixed resistor varies linearly with respect to the digital code transferred into the VR latch. The variable resistor offers a completely programmable value of resistance between the A terminal and the wiper or the B terminal and the wiper. The fixed A-to-B terminal resistance of 10 kO, 50 kO, or 100 kO has a nominal temperature coefficient of 700 ppm/°C. Each VR has its own VR latch that holds its programmed resistance value. These VR latches are updated from an internal serial-to-parallel shift register that is loaded from a standard 3-wire serial-input digital interface. Eleven data bits make up the data-word clocked into the serial input register. The first three bits are decoded to determine which VR latch is loaded with the last eight bits of the data-word when the CS strobe is returned to logic high. A serial data output pin at the opposite end of the serial register (AD5204 only) allows simple daisy chaining in multiple VR applications without requiring additional external decoding logic. An optional reset (PR) pin forces all the AD5204 wipers to the midscale position by loading 0x80 into the VR latch. The AD5204/AD5206 are available in the 24-lead surface-mount SOIC, TSSOP, and PDIP packages. The AD5204 is also available in a 32-lead, 5 mm × 5 mm LFCSP package. All parts are guaranteed to operate over the extended industrial temperature range of -40°C to +85°C. For additional single-, dual-, and quad-channel devices, see the AD8400/AD8402/AD8403 data sheets. Applications Mechanical potentiometer replacement Instrumentation: gain, offset adjustment Programmable voltage-to-current conversion Programmable filters, delays, time constants Line impedance matching Data Sheet, Rev. B, 5/09
