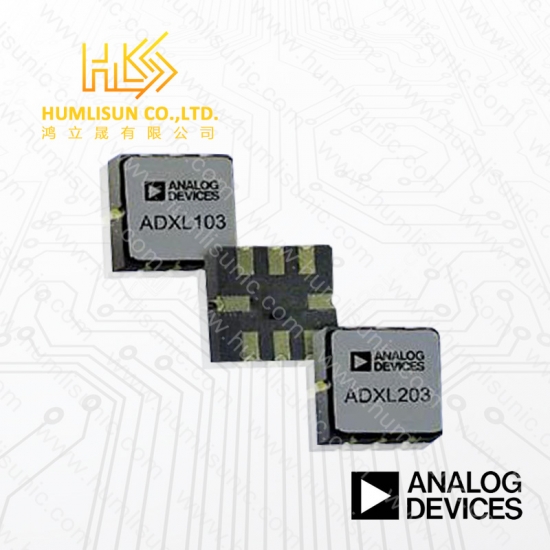

Part No .:
ADXL203CEManufacturer:
Analog devicesDescription:
MEMSRemark:
new originLast Updated:
2024/04/26
Physical
|
|
Case/Package | LCC |
Contact Plating | Nickel , Gold |
Number of Pins | 8 |
Technical
|
|
-3db Bandwidth | 2.5 kHz |
Axis | X, Y |
Bandwidth | 0.5 Hz |
Frequency | 5.5 kHz |
Max Operating Temperature | 125 °C |
Max Supply Voltage | 6 V |
Min Operating Temperature | -40 °C |
Min Supply Voltage | 3 V |
Nominal Supply Current | 700 µA |
Operating Supply Current | 700 µA |
Operating Supply Voltage | 3.3 V |
Output Type | Analog |
Sensitivity | 1000 mV/g |
Dimensions
|
|
Depth | 5 mm |
Height | 1.98 mm |
Length | 5 mm |
Width | 5 mm |
Compliance
|
|
Lead Free | Contains Lead |
REACH SVHC | No SVHC |
Radiation Hardening | No |
RoHS | Compliant |
The ADXL103/ADXL203 are high precision, low power, complete single- and dual-axis accelerometers with signal conditioned voltage outputs, all on a single, monolithic IC. The ADXL103/ADXL203 measure acceleration with a full-scale range of ±1.7 g, ±5 g, ±18 g. The ADXL103/ADXL203 can measure both dynamic acceleration (for example, vibration) and static acceleration (for example, gravity). A typical noise floor as low as 110 µg/√Hz, allows signals below 1 mg (0.06° of inclination) to be resolved in tilt sensing applications using narrow bandwidths (<60 Hz). The user selects the bandwidth of the accelerometer using Capacitor CX and Capacitor CY at the XOUT and YOUT pins. Bandwidths of 0.5 Hz to 2.5 kHz may be selected to suit the application. The ADXL103 and ADXL203 are available in 5 mm × 5 mm × 2 mm, 8-pad hermetic LCC packages. Applications Vehicle dynamic control (VDC)/electronic stability program (ESP) systems Electronic chassis control Electronic braking Platform stabilization/leveling Navigation Alarms and motion detectors High accuracy, 2-axis tilt sensing
