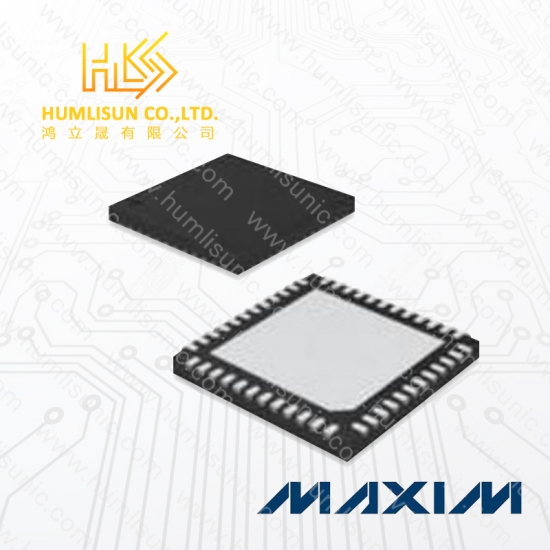

Part No .:
MAX17102ETM+TManufacturer:
Maxim IntegratedDescription:
ICRemark:
new originLast Updated:
2025/07/07
|
Physical
|
|
| Mount | Surface Mount |
| Number of Pins | 48 |
|
Technical
|
|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
|
Compliance
|
|
| RoHS | Compliant |
