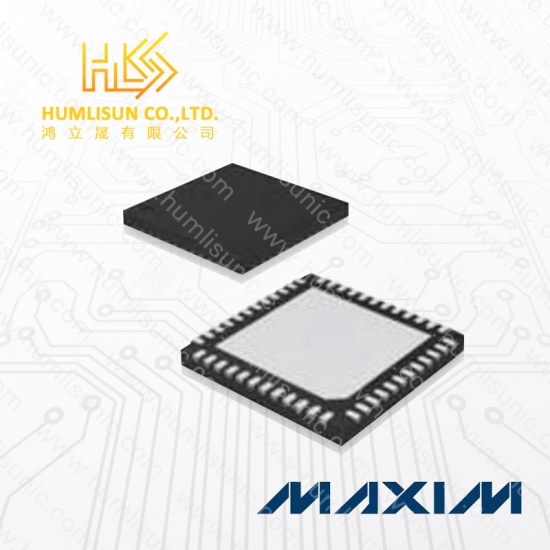

Part No .:
MAX1586CETM+Manufacturer:
Maxim IntegratedDescription:
ICRemark:
new originLast Updated:
2025/11/16
|
Physical
|
|
| Case/Package | QFN |
| Contact Plating | Tin |
| Mount | Surface Mount |
| Number of Pins | 48 |
|
Technical
|
|
| Frequency | 1 MHz |
| Max Input Voltage | 5.5 V |
| Max Operating Temperature | 85 °C |
| Max Output Current | 1.2 A |
| Max Output Voltage | 5.5 V |
| Max Power Dissipation | 2.105 W |
| Max Supply Voltage | 5.5 V |
| Min Input Voltage | 2.6 V |
| Min Operating Temperature | -40 °C |
| Min Output Voltage | 700 mV |
| Min Supply Voltage | 2.4 V |
| Number of Outputs | 1 |
| Output Current | 1.3 A |
| Output Voltage | 1.25 V |
| Power Dissipation | 2.1 W |
| Switching Frequency | 1 MHz |
| Termination | SMD/SMT |
|
Compliance
|
|
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
