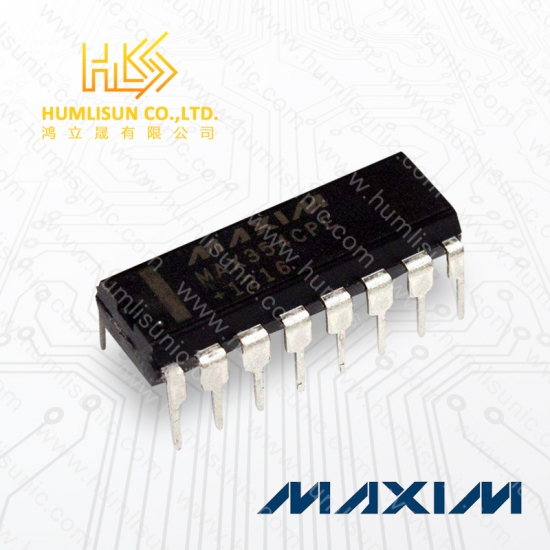

Part No .:
MAX354CWEManufacturer:
Maxim IntegratedDescription:
ICRemark:
new originLast Updated:
2025/11/02
|
Physical
|
|
| Case/Package | SOIC |
| Contact Plating | Tin |
| Mount | Surface Mount |
| Number of Pins | 16 |
|
Technical
|
|
| High Level Output Current | 30 mA |
| Logic Function | Multiplexer |
| Max Dual Supply Voltage | 18 V |
| Max Operating Temperature | 70 °C |
| Max Power Dissipation | 762 mW |
| Max Supply Voltage | 36 V |
| Min Dual Supply Voltage | 4.5 V |
| Min Operating Temperature | 0 °C |
| Min Supply Voltage | 4.5 V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| On-State Resistance | 350 Ω |
| Operating Supply Current | 300 µA |
| Operating Supply Voltage | 28 V |
| Propagation Delay | 250 ns |
| Supply Type | Single , Dual |
| Throw Configuration | DPST |
| Turn-Off Delay Time | 200 ns |
| Turn-On Delay Time | 250 ns |
|
Dimensions
|
|
| Height | 2.35 mm |
| Length | 10.5 mm |
| Width | 7.6 mm |
|
Compliance
|
|
| Lead Free | Lead Free |
| REACH SVHC | Unknown |
| Radiation Hardening | No |
| RoHS | Compliant |
Applications
Data-Acquisition Systems
Industrial and Process Control
Avionics ATE Equipment
Signal Routing
Redundant/Backup Systems
Physical Case/Package SSOP Mount Surface Mount Number of Pins 16 Technical Logic Function Multiplexer Max Dual Supply Voltage 20 V Max Operating Temperature 85 °C Max Supply Voltage 30 V Min Dual Supply Voltage 4.5 V Min Operating Temperature -40 °C Min Supply Voltage 4.5 V On-State Resistance 400 Ω Operating Supply Current 1 µA Supply Type Single , Dual Compliance Radiation Hardening No RoHS Non-Compliant Maxim Integrated MAX339EEE+T Analog Multiplexer Dual 4:1 16-Pin QSOP T/R
Data sheet Physical Case/Package SOIC Mount Surface Mount Number of Pins 8 Technical Gain 6 dB Max Operating Temperature 85 °C Min Operating Temperature -40 °C Compliance Lead Free Lead Free Radiation Hardening No RoHS Compliant The MAX7450/MAX7451/MAX7452 complete front-end video-signal conditioners are designed to improve the quality of standard-definition video signals. The devices restore the DC level of the video input, correct for amplitude errors up to ±6dB, detect fault conditions, and filter out-of-band noise. The MAX7450/MAX7451/ MAX7452 optimize the signal quality for further video processing through a crosspoint switch or video decoder (ADC). Each device integrates an input video clamp, automatic gain control (AGC), loss-of-sync (LOS) detector, and an out-of-band noise/lowpass filter. These devices also incorporate a user-selectable buffer gain (0 or +6dB) and an AGC-disable function. The MAX7450 and MAX7451 operate from dual power supplies of ±5V or ±3.3V respectively, and they restore the video blanking level to GND. The MAX7452 operates from a single +5V supply and features a user-adjustable clamp level. The devices are available in an 8-pin SO package with an exposed pad and are specified for operation over the extended (-40°C to +85°C) temperature range.
Data sheet Physical Case/Package SOIC Contact Plating Tin Mount Surface Mount Number of Pins 24 Weight 0.025909 oz Technical High Level Output Current -2 mA Interface Serial Low Level Output Current 5 mA Max Input Voltage 5.5 V Max Operating Temperature 70 °C LED DRIVER 8 DIGIT CC, SMD, 7219; LED Driver Application:Displays, Panel Meters; Topology:Common Cathode; No. of Outputs:8; Output Current:320mA; Output Voltage:4.5V; Input Voltage:4V to 5.5V; Dimming Control Type:Analogue / Digital; Operating Temperature Range:0°C to +70°C; Driver Case Style:SOIC; Switching Frequency:10MHz; Base Number:7219; Character Type:8 Digit; Data / Control Interface:Serial 4 Wire; Device Type:LED; IC Generic Number:7219; IC Temperature Range:Commercial; Interface Type:Common Cathode; LED Display Type:7 Segment / Bar Graph; Logic Function Number:7219; No. of Pins:24; No. of Segments:7; Operating Temperature Max:70°C; Operating Temperature Min:0°C; Package / Case:SOIC; Supply Voltage Max:5.5V; Supply Voltage Min:4V; Termination Type:SMD
Data sheet Physical Case/Package PDIP Mount Through Hole Number of Pins 28 Technical Dual Supply Voltage 9 V Logic Function Multiplexer Max Dual Supply Voltage 20 V Max Operating Temperature 70 °C Max Power Dissipation 727 mW Max Supply Voltage 30 V Min Dual Supply Voltage 4.5 V Min Operating Temperature 0 °C Min Supply Voltage 5 V Number of Channels 2 Number of Circuits 2 On-State Resistance 175 Ω Operating Supply Current 500 µA Operating Supply Voltage 28 V Propagation Delay 300 ns Supply Type Single , Dual Turn-Off Delay Time 300 ns Turn-On Delay Time 600 ns Dimensions Height 4.45 mm Length 37.34 mm Width 14.61 mm Compliance Lead Free Lead Free REACH SVHC Unknown Radiation Hardening No RoHS Compliant The MAX306/MAX307 precision, monolithic, CMOS analog multiplexers (muxes) offer low on-resistance (less than 100Ω), which is matched to within 5Ω between channels and remains flat over the specified analog signal range (7Ω, max). They also offer low leakage over temperature (INO(OFF) less than 2.5nA at +85°C) and fast switching speeds (tTRANS less than 250ns). The MAX306 is a single-ended 1-of-16 device, and the MAX307 is a differential 2-of-8 device. The MAX306/MAX307 are fabricated with Maxim’s improved 44V silicon-gate process. Design improvements yield extremely low charge injection (less than 10pC) and guarantee electrostatic discharge (ESD) protection greater than 2000V. These muxes operate with a single +5V to +30V supply, or bipolar ±4.5V to ±20V supplies, while retaining TTL/ CMOS-logic input compatibility and fast switching. CMOS inputs provide reduced input loading. These improved parts are plug-in upgrades for the industrystandard DG406, DG407, DG506A, and DG507A.
Data sheet Physical Case/Package TSSOP Mount Surface Mount Number of Pins 16 Technical Max Dual Supply Voltage 20 V Max Operating Temperature 70 °C Max Power Dissipation 842 mW Max Supply Current 200 µA Max Supply Voltage 36 V Min Dual Supply Voltage 4.5 V Min Operating Temperature 0 °C Min Supply Voltage 4.5 V Nominal Supply Current 5 µA On-State Resistance 10 Ω Operating Supply Voltage 18 V Supply Type Single , Dual Throw Configuration SPST Turn-Off Delay Time 235 ns Turn-On Delay Time 275 ns Compliance Lead Free Lead Free Radiation Hardening No RoHS Compliant Maxim’s MAX312/MAX313/MAX314 analog switches feature low on-resistance (10Ω max) and 1.5Ω on-resistance matching between channels. These switches conduct equally well in either direction. They offer low leakage over temperature (2.5nA at +85°C). Low power consumption and ESD tolerance greater than 2000V per Method 3015.7 are guaranteed. The MAX312/MAX313/MAX314 are quad, singlepole/single-throw (SPST) analog switches. The MAX312 is normally closed (NC), and the MAX313 is normally open (NO). The MAX314 has two NC switches and two NO switches. All three devices operate from a single supply of +4.5V to +30V or from dual supplies of ±4.5V to ±20V. Applications: Test Equipment Communication Systems PBX, PABX Systems Audio Signal Routing Avionics Sample-and-Hold Circuits Data Acquisition Systems
Data sheet Physical Case/Package DIP Mount Through Hole Number of Pins 16 Technical Drain to Source Resistance 10 Ω Dual Supply Voltage 9 V Max Dual Supply Voltage 20 V Max Operating Temperature 70 °C Max Power Dissipation 842 mW Max Supply Current 1 µA Max Supply Voltage 30 V Min Dual Supply Voltage 4.5 V Min Operating Temperature 0 °C Min Supply Voltage 4.5 V Nominal Supply Current 5 µA Number of Channels 4 On-State Resistance 10 Ω Operating Supply Voltage 18 V Supply Type Single , Dual Termination Through Hole Throw Configuration SPST Turn-Off Delay Time 235 ns Turn-On Delay Time 275 ns Dimensions Height 4.45 mm Length 19.43 mm Width 7.87 mm Compliance Lead Free Lead Free REACH SVHC Unknown Radiation Hardening No RoHS Compliant SWITCH, QUAD SPST, DIP16, 312; Switch Type, Analogue:SPST; Switches, No. of:4; Voltage, Supply Source:Dual; Resistance, On State:6.5ohm; Voltage, Supply Min:4.5V; Voltage, Supply Max:20V; Termination Type:Through Hole; Case Style:DIP; No. of Pins:16; Operating Temperature Range:0°C to +70°C; Base Number:312; IC Generic Number:312; Logic Function Number:312; No. of Channels:4; Resistance, Rds On:10ohm; Temp, Op. Max:70°C; Temp, Op. Min:0°C; Temperature Range, IC:Commercial
Data sheet Physical Mount Surface Mount Number of Pins 48 Technical Max Operating Temperature 85 °C Min Operating Temperature -40 °C Compliance RoHS Compliant
Data sheet Physical Number of Pins 40 Technical Max Operating Temperature 85 °C Min Operating Temperature -40 °C Compliance RoHS Compliant High-Efficiency, Low-Iq, PMICs with Dynamic Voltage Management for Mobile Applica
Data sheet Physical Case/Package QFN Contact Plating Tin Mount Surface Mount Number of Pins 48 Technical Frequency 1 MHz Max Input Voltage 5.5 V Max Operating Temperature 85 °C Max Output Current 1.2 A Max Output Voltage 5.5 V Max Power Dissipation 2.105 W Max Supply Voltage 5.5 V Min Input Voltage 2.6 V Min Operating Temperature -40 °C Min Output Voltage 700 mV Min Supply Voltage 2.4 V Number of Outputs 1 Output Current 1.3 A Output Voltage 1.25 V Power Dissipation 2.1 W Switching Frequency 1 MHz Termination SMD/SMT Compliance Lead Free Lead Free Radiation Hardening No RoHS Compliant High-Efficiency, Low-IQ PMICs with Dynamic Core for PDAs and Smartphones
Data sheet Physical Mount Surface Mount Number of Pins 28 Technical Max Duty Cycle 100% Max Operating Temperature 105 °C Min Operating Temperature -40 °C Number of Outputs 1 Operating Supply Current 1.5 mA Operating Supply Voltage 5.5 V Output Current 20 A Output Voltage 1.12 V Switching Frequency 600 kHz Compliance RoHS Compliant Quick PWM NVIDIA CPU Controller 28-Pin TQFN EP
Data sheet Physical Case/Package QFN Mount Surface Mount Number of Pins 48 Technical Frequency 1 MHz Max Operating Temperature 85 °C Min Operating Temperature -40 °C Operating Supply Current 130 µA Operating Supply Voltage 5.5 V Output Current 1.3 A Output Voltage 5.5 V Compliance Lead Free Lead Free Radiation Hardening No RoHS Compliant High-Efficiency, Low-IQ PMIC with Dynamic Core for PDAs and Smartphones
data sheet Physical Case/Package PLCC Contact Plating Tin Number of Pins 20 Technical Dual Supply Voltage 15 V High Level Output Current 30 mA Interface Parallel Max Dual Supply Voltage 22 V Max Operating Temperature 85 °C Max Power Dissipation 470 mW Max Supply Current 1 mA Max Supply Voltage 25 V Min Operating Temperature -40 °C Number of Bits 4 Number of Channels 4 Number of Circuits 4 Number of Inputs 4 Number of Outputs 4 On-State Resistance 115 Ω Operating Supply Voltage 5 V Polarity Non-Inverting Supply Type Dual Throw Configuration SPST Turn-Off Delay Time 450 ns Turn-On Delay Time 600 ns Dimensions Height 4.53 mm Length 8.89 mm Width 8.89 mm Compliance Lead Free Contains Lead RoHS Compliant The ADG211A is a monolithic CMOS device comprising four independently selectable switches. They are designed on an enhanced LC2MOS process which gives an increased signal handling capability of ±15 V. These switches also feature high switching speeds and low RON. The ADG211A switches are turned on with a logic low on the appropriate control input. Each switch conducts equally well in both directions when ON and each has an input signal range that extends to the supplies. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
