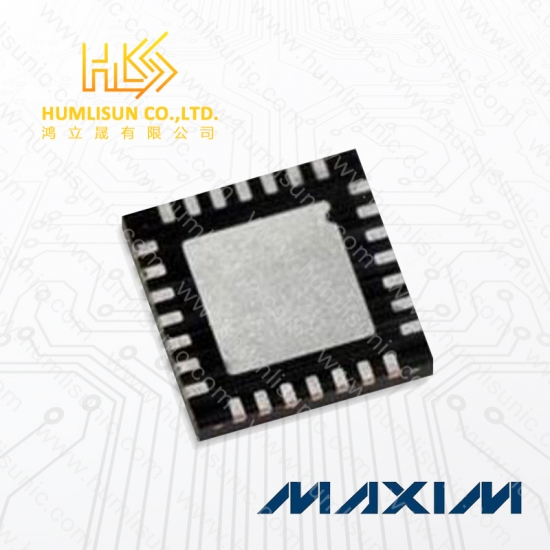

Part No .:
MAX17409GTI+Manufacturer:
Maxim IntegratedDescription:
ICRemark:
new originLast Updated:
2025/12/06
|
Physical
|
|
| Mount | Surface Mount |
| Number of Pins | 28 |
|
Technical
|
|
| Max Duty Cycle | 100% |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Outputs | 1 |
| Operating Supply Current | 1.5 mA |
| Operating Supply Voltage | 5.5 V |
| Output Current | 20 A |
| Output Voltage | 1.12 V |
| Switching Frequency | 600 kHz |
|
Compliance
|
|
| RoHS | Compliant |
