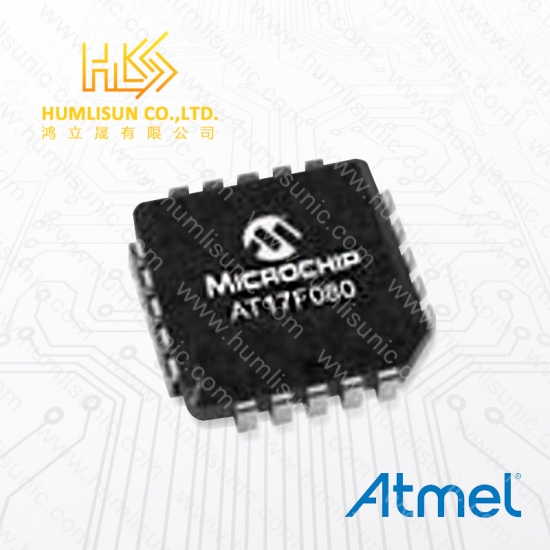

Part No .:
AT17F080-30CIManufacturer:
AtmelDescription:
ICRemark:
new originLast Updated:
2024/09/16
|
Physical
|
|
| Mount | Surface Mount |
| Number of Pins | 8 |
|
Technical
|
|
| Density | 8 Mb |
| Frequency | 33 MHz |
| Interface | Serial , 2-Wire |
| Max Frequency | 33 MHz |
| Max Operating Temperature | 85 °C |
| Max Supply Voltage | 3.63 V |
| Memory Size | 8 Mb |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 2.97 V |
| Nominal Supply Current | 20 mA |
| Operating Supply Current | 20 mA |
| Operating Supply Voltage | 3.3 V |
|
Compliance
|
|
| Lead Free | Contains Lead |
| RoHS | Non-Compliant |
FPGA
Configuration
Flash Memory
Data sheet Physical Case/Package PDIP Mount Through Hole Number of Pins 8 Technical Density 64 kb Frequency 12.5 MHz Interface Serial , 2-Wire Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 64 kb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 4.5 V The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easyto-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20- lead PLCC, 20-lead SOIC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode.
Data sheet Physical Case/Package TQFP Number of Pins 44 Technical Max Frequency 33 MHz Max Operating Temperature 85 °C Max Supply Voltage 3.63 V Memory Size 8 Mb Min Operating Temperature -40 °C Min Supply Voltage 2.97 V Operating Supply Current 20 mA Compliance Lead Free Contains Lead RoHS Compliant The AT17F Series of In-System Programmable Configuration PROMs (Configurators) provide an easy-to-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17F Series device is packaged in the 8-lead LAP, 20-lead PLCC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17F Series Configurator uses a simple serial-access procedure to configure one or more FPGA devices. The AT17F Series Configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.
Data sheet Physical Number of Pins 8 Technical Frequency 15 MHz Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 1 Mb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 4.5 V Nominal Supply Current 10 mA Compliance Lead Free Contains Lead RoHS Compliant The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easyto-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20- lead PLCC, 20-lead SOIC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode. The AT17LV series configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.
Data sheet Physical Case/Package PDIP Contact Plating Tin Mount Through Hole Number of Pins 8 Weight 0.032805 oz Technical Density 512 kb Interface Serial , 2-Wire Max Frequency 15 MHz Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 512 kb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 3 V Nominal Supply Current 10 mA Operating Supply Current 10 mA Compliance Lead Free Lead Free Radiation Hardening No RoHS Non-Compliant The Atmel® AT17LVxxxA FPGA configuration EEPROMs (Configurators) provide an easy-to-use, cost-effective configuration memory solution for FPGAs. The AT17LVxxxA are packaged in 8-lead PDIP and 20-lead PLCC options. The AT17LVxxxA configurator uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices support a write protection mechanism within its programming mode.
Data sheet Physical Contact Plating Gold Mount Surface Mount Number of Pins 8 Technical Density 1 Mb Frequency 15 MHz Interface Serial , 2-Wire Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 1 Mb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 3 V Nominal Supply Current 10 mA Voltage 5 V Compliance Lead Free Lead Free Radiation Hardening No RoHS Non-Compliant The AT17LV FPGA Configuration EEPROMs (Configurators) provide an easy-touse, cost-effective configuration memory solution for Field Programmable Gate Arrays. The AT17LV devices are packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20-lead PLCC, 20-lead SOIC and 44-lead TQFP options(Table 1). The AT17LV Configurators use a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function during programming. These devices also support a write protection mechanism within its programming mode.
Data sheet Physical Case/Package PLCC Mount Surface Mount Number of Pins 20 Technical Density 1 Mb Frequency 15 MHz Interface Serial , 2-Wire Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 1 Mb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 3 V Nominal Supply Current 10 mA Compliance Lead Free Contains Lead Radiation Hardening No RoHS Compliant The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easyto-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20- lead PLCC, 20-lead SOIC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode. The AT17LV series configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.
Data sheet Physical Case/Package LCC Mount Surface Mount Number of Pins 20 Technical Density 256 kb Frequency 12.5 MHz Interface Serial , 2-Wire Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 256 kb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 4.5 V Nominal Supply Current 10 mA Compliance Lead Free Contains Lead RoHS Compliant The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easyto-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20- lead PLCC, 20-lead SOIC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode. The AT17LV series configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.
Data sheet Physical Case/Package QFN Mount Surface Mount Number of Pins 32 Technical Max Operating Temperature 85 °C Min Operating Temperature -40 °C Operating Supply Current 6 mA Compliance RoHS Compliant The AT73C213B is a fully integrated, low-cost, combined stereo audio DAC and audio power amplifier circuit targeted for Li-Ion or Ni-Mh battery powered devices such as mobile phones, smartphones, PDA, DECT phones, digital still cameras, music players or any other type of handheld device where an audio interface is needed. Power Management and Analog Companions (PMAAC) Audio Interface for Portable Handsets
Data sheet Physical Case/Package P Number of Pins 8 Weight 0.018646 oz Technical Max Operating Temperature 70 °C Max Output Current 100 mA Max Supply Voltage 36 V Min Operating Temperature 0 °C Min Supply Voltage 2.2 V Operating Supply Current 500 µA Output Current 100 mA Reference Voltage 1.3 V Dimensions Height 4.57 mm Length 9.81 mm Width 6.35 mm Compliance Lead Free Lead Free Radiation Hardening No RoHS Compliant Power Supply Support Precision Analog Controller
Data sheet Physical Case/Package TSSOP Mount Surface Mount Number of Pins 16 Technical Max Dual Supply Voltage 20 V Max Operating Temperature 70 °C Max Power Dissipation 842 mW Max Supply Current 200 µA Max Supply Voltage 36 V Min Dual Supply Voltage 4.5 V Min Operating Temperature 0 °C Min Supply Voltage 4.5 V Nominal Supply Current 5 µA On-State Resistance 10 Ω Operating Supply Voltage 18 V Supply Type Single , Dual Throw Configuration SPST Turn-Off Delay Time 235 ns Turn-On Delay Time 275 ns Compliance Lead Free Lead Free Radiation Hardening No RoHS Compliant Maxim’s MAX312/MAX313/MAX314 analog switches feature low on-resistance (10Ω max) and 1.5Ω on-resistance matching between channels. These switches conduct equally well in either direction. They offer low leakage over temperature (2.5nA at +85°C). Low power consumption and ESD tolerance greater than 2000V per Method 3015.7 are guaranteed. The MAX312/MAX313/MAX314 are quad, singlepole/single-throw (SPST) analog switches. The MAX312 is normally closed (NC), and the MAX313 is normally open (NO). The MAX314 has two NC switches and two NO switches. All three devices operate from a single supply of +4.5V to +30V or from dual supplies of ±4.5V to ±20V. Applications: Test Equipment Communication Systems PBX, PABX Systems Audio Signal Routing Avionics Sample-and-Hold Circuits Data Acquisition Systems
Data sheet Physical Mount Surface Mount Number of Pins 5 Technical Max Operating Temperature 85 °C Max Supply Voltage 2.7 V Min Operating Temperature -40 °C Min Supply Voltage 800 mV Number of Channels 1 Number of Inputs 1 Number of Outputs 1 On-State Resistance 15 Ω Operating Supply Current 10 µA Throw Configuration SPST Compliance RoHS Compliant This single analog switch is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation. The SN74AUC1G66 can handle both analog and digital signals. The combined AC and DC signal has to be between VCC and GND for it to be transmitted in either direction. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems
