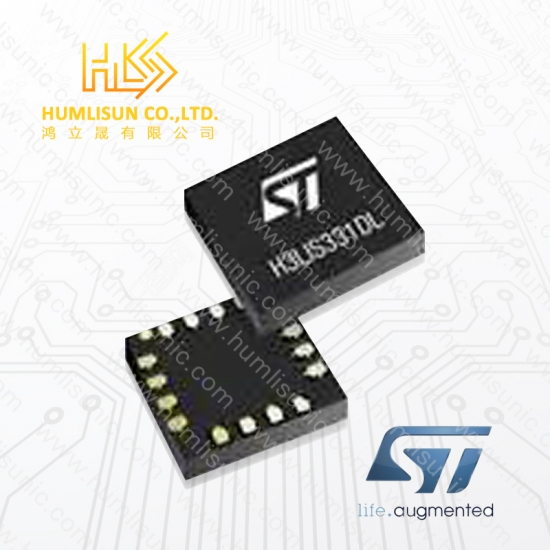

Part No .:
H3LIS331DLTRManufacturer:
STMicroeletronicsDescription:
memsRemark:
new originLast Updated:
2025/11/11
|
Physical
|
|
| Case/Package | LGA |
| Mount | Surface Mount |
| Number of Pins | 16 |
|
Technical
|
|
| Axis | X, Y, Z |
| Bandwidth | 500 Hz |
| Interface | I2C , SPI |
| Max Operating Temperature | 85 °C |
| Max Supply Voltage | 3.6 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 2.16 V |
| Output Type | Digital , SPI , I2C |
| Resolution | 16 b |
| Sensor Type | 3 Axis |
|
Dimensions
|
|
| Depth | 3 mm |
| Length | 3 mm |
|
Compliance
|
|
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
Data sheet Physical Mount Surface Mount Number of Pins 16 Technical Axis X, Y, Z Bandwidth 200 Hz Max Operating Temperature 85 °C Max Supply Voltage 3.6 V Min Operating Temperature -40 °C Min Supply Voltage 2.16 V Output Type SPI , I2C Compliance Lead Free Lead Free REACH SVHC No SVHC RoHS Compliant MEMS motion sensor: low-power high-g 3-axis digital accelerometer
MEMS motion sensor: low-power high-g 3-axis digital accelerometer The H3LIS100DL is a low-power highperformance 3-axis linear accelerometer belonging to the “nano” family, with digital I2C/SPI serial interface standard output. The device features ultra-low-power operational modes that allow advanced power saving and smart sleep-to-wakeup functions. The H3LIS100DL has a full scale of ±100 g and is capable of measuring accelerations with output data rates from 0.5 Hz to 400 Hz. The H3LIS100DL is available in a small thin plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.
Data sheet Physical Case/Package QFN Mount Surface Mount Number of Pins 24 Technical Axis X, Y, Z Bandwidth 500 Hz Max Operating Temperature 105 °C Max Supply Voltage 3.6 V Min Operating Temperature -40 °C Min Supply Voltage 2.16 V Output Type SPI , I2C Compliance Lead Free Lead Free REACH SVHC No SVHC RoHS Compliant High-performance ultra-low-power 3-axis accelerometer with digital output for industrial applications
Data sheet Physical Case/Package QFN Contact Plating Tin Mount Surface Mount Number of Pins 2400% Technical Axis X, Y, Z Bandwidth 500 Hz Max Operating Temperature 105 °C Min Operating Temperature -40 °C Operating Supply Voltage 3.6 V Output Type SPI , I2C , Digital Compliance RoHS Compliant High-performance motion sensor for automotive applications: ultra-low-power digital output 3-axis accelerometer The AIS3624DQ is available in a small quad flat no-lead (QFN) package (4x4 mm footprint) and is guaranteed to operate over an extended temperature range from -40 °C to +105 °C. This product may be used in a variety of automotive non-safety applications such as: Motion-activated functions Telematic boxes Impact recognition and logging Vibration monitoring and compensation
Data sheet Physical Case/Package LGA Contact Plating Nickel , Gold Number of Pins 14 Technical Axis X, Y, Z Bandwidth 5.3 kHz Interface I2C , SPI Max Operating Temperature 85 °C Max Supply Voltage 3.6 V Max Supply Voltage (DC) 3.6 V Min Operating Temperature -40 °C Min Supply Voltage 1.71 V Min Supply Voltage (DC) 1.71 V Operating Supply Current 2 µA Output Type Digital Sensor Type 3 Axis Dimensions Height 1 mm Length 2.15 mm Width 2.15 mm Compliance Lead Free Lead Free REACH SVHC No SVHC Radiation Hardening No RoHS Compliant MEMS digital output motion sensor: ultra low-power high performance 3-axis “femto” accelerometer Applications ■ Motion activated functions ■ Display orientation ■ Shake control ■ Pedometer ■ Gaming and virtual reality input devices ■ Impact recognition and logging
Data sheet MEMS inertial sensor high performance 3-axis ±2/±6g ultracompact linear accelerometer Physical Case/Package LGA Contact Plating Nickel , Gold Mount Surface Mount Number of Pins 1600% Technical Axis X, Y, Z Bandwidth 2 kHz Max Operating Temperature 85 °C Max Supply Voltage 3.6 V Min Operating Temperature -40 °C Min Supply Voltage 2.4 V Nominal Supply Current 680 µA Output Type Analog Sensitivity 15000 mV/g Dimensions Height 1.33 mm Length 4.15 mm Width 4.15 mm Compliance Lead Free Lead Free Radiation Hardening No RoHS Compliant
Data sheet Physical Case/Package TQFP Number of Pins 44 Technical Max Frequency 33 MHz Max Operating Temperature 85 °C Max Supply Voltage 3.63 V Memory Size 8 Mb Min Operating Temperature -40 °C Min Supply Voltage 2.97 V Operating Supply Current 20 mA Compliance Lead Free Contains Lead RoHS Compliant The AT17F Series of In-System Programmable Configuration PROMs (Configurators) provide an easy-to-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17F Series device is packaged in the 8-lead LAP, 20-lead PLCC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17F Series Configurator uses a simple serial-access procedure to configure one or more FPGA devices. The AT17F Series Configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.
Data sheet Physical Case/Package PDIP Mount Through Hole Number of Pins 8 Technical Density 64 kb Frequency 12.5 MHz Interface Serial , 2-Wire Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 64 kb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 4.5 V The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easyto-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20- lead PLCC, 20-lead SOIC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode.
Data sheet Physical Case/Package R Number of Pins 8 Technical Common Mode Rejection Ratio 110 dB Dual Supply Voltage 15 V Gain Bandwidth Product 75 kHz Input Bias Current 20 nA Input Offset Voltage (Vos) 500 µV Max Dual Supply Voltage 18 V Max Operating Temperature 125 °C Max Supply Voltage 36 V Min Dual Supply Voltage 1.5 V Min Operating Temperature -40 °C Min Supply Voltage 3 V Nominal Supply Current 300 µA Number of Amplifiers 2 Number of Channels 2 Number of Circuits 2 Number of Elements 2 Operating Supply Current 350 µA Operating Supply Voltage 28 V Output Current per Channel 25 mA Power Supply Rejection Ratio (PSRR) 110 dB Quiescent Current 150 µA Slew Rate 0.03 V/µs Unity Gain Bandwidth Product 75 kHz Voltage Gain 140 dB Compliance Lead Free Contains Lead Radiation Hardening No RoHS Compliant Rail-to-rail output swing combined with dc accuracy are the key features of the OP495 quad and OP295 dual CBCMOS operational amplifiers. By using a bipolar front end, lower noise and higher accuracy than those of CMOS designs have been achieved. Both input and output ranges include the negative supply, providing the user with zero-in/zero-out capability. For users of 3.3 V systems such as lithium batteries, the OP295/OP495 are specified for 3 V operation. Maximum offset voltage is specified at 300 µV for 5 V operation, and the open-loop gain is a minimum of 1000 V/mV. This yields performance that can be used to implement high accuracy systems, even in single-supply designs. The ability to swing rail-to-rail and supply 15 mA to the load makes the OP295/OP495 ideal drivers for power transistors and H bridges. This allows designs to achieve higher efficiencies and to transfer more power to the load than previously possible without the use of discrete components. For applications such as transformers that require driving inductive loads, increases in efficiency are also possible. Stability while driving capacitive loads is another benefit of this design over CMOS rail-to-rail amplifiers. This is useful for driving coax cable or large FET transistors. The OP295/OP495 are stable with loads in excess of 300 pF. The OP295 and OP495 are specified over the extended indus-trial (-40°C to +125°C) temperature range. The OP295 is available in 8-lead PDIP and 8-lead SOIC_N surface-mount packages. The OP495 is available in 14-lead PDIP and 16-lead SOIC_W surface-mount packages. Applications Battery-operated instrumentation Servo amplifiers Actuator drives Sensor conditioners Power supply control
Data sheet Physical Mount Surface Mount Number of Pins 5 Technical Max Operating Temperature 85 °C Max Supply Voltage 2.7 V Min Operating Temperature -40 °C Min Supply Voltage 800 mV Number of Channels 1 Number of Inputs 1 Number of Outputs 1 On-State Resistance 15 Ω Operating Supply Current 10 µA Throw Configuration SPST Compliance RoHS Compliant This single analog switch is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation. The SN74AUC1G66 can handle both analog and digital signals. The combined AC and DC signal has to be between VCC and GND for it to be transmitted in either direction. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems
Data sheet Physical Case/Package SOIC W Contact Plating Tin Mount Surface Mount Number of Pins 24 Technical -3db Bandwidth 721 kHz Composition Potentiometer Dual Supply Voltage 2.5 V Interface SPI Max Dual Supply Voltage 2.7 V Max Operating Temperature 85 °C Max Supply Current 12 µA Max Supply Voltage 5.5 V Memory Type Volatile Min Dual Supply Voltage 2.3 V Min Operating Temperature -40 °C Min Supply Voltage 2.7 V Nominal Supply Current 12 µA Number of Circuits 6 Number of Elements 6 Number of Positions 256 Number of Taps 256 Operating Supply Current 12 µA Quiescent Current 12 µA Resistance 50 kΩ Taper Linear Temperature Coefficient 700 ppm/°C Tolerance 30% Dimensions Height 2.65 mm Length 15.6 mm Width 7.6 mm Compliance Lead Free Contains Lead REACH SVHC No SVHC RoHS Compliant The AD5204/AD5206 provide 4-/6-channel, 256-position digitally controlled variable resistor (VR) devices. These devices perform the same electronic adjustment function as a potentiometer or variable resistor. Each channel of the AD5204/ AD5206 contains a fixed resistor with a wiper contact that taps the fixed resistor value at a point determined by a digital code loaded into the SPI-compatible serial-input register. The resistance between the wiper and either endpoint of the fixed resistor varies linearly with respect to the digital code transferred into the VR latch. The variable resistor offers a completely programmable value of resistance between the A terminal and the wiper or the B terminal and the wiper. The fixed A-to-B terminal resistance of 10 kO, 50 kO, or 100 kO has a nominal temperature coefficient of 700 ppm/°C. Each VR has its own VR latch that holds its programmed resistance value. These VR latches are updated from an internal serial-to-parallel shift register that is loaded from a standard 3-wire serial-input digital interface. Eleven data bits make up the data-word clocked into the serial input register. The first three bits are decoded to determine which VR latch is loaded with the last eight bits of the data-word when the CS strobe is returned to logic high. A serial data output pin at the opposite end of the serial register (AD5204 only) allows simple daisy chaining in multiple VR applications without requiring additional external decoding logic. An optional reset (PR) pin forces all the AD5204 wipers to the midscale position by loading 0x80 into the VR latch. The AD5204/AD5206 are available in the 24-lead surface-mount SOIC, TSSOP, and PDIP packages. The AD5204 is also available in a 32-lead, 5 mm × 5 mm LFCSP package. All parts are guaranteed to operate over the extended industrial temperature range of -40°C to +85°C. For additional single-, dual-, and quad-channel devices, see the AD8400/AD8402/AD8403 data sheets. Applications Mechanical potentiometer replacement Instrumentation: gain, offset adjustment Programmable voltage-to-current conversion Programmable filters, delays, time constants Line impedance matching Data Sheet, Rev. B, 5/09
