Part No .:

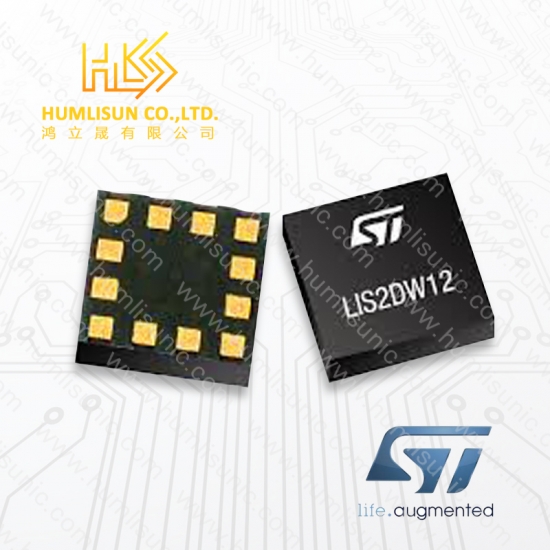

LIS2DW12TRManufacturer:
STMicroeletronicsDescription:
MEMSRemark:
new originLast Updated:
2024/04/19
Data sheet Physical Mount Surface Mount Number of Pins 16 Technical Axis X, Y, Z Bandwidth 200 Hz Max Operating Temperature 85 °C Max Supply Voltage 3.6 V Min Operating Temperature -40 °C Min Supply Voltage 2.16 V Output Type SPI , I2C Compliance Lead Free Lead Free REACH SVHC No SVHC RoHS Compliant MEMS motion sensor: low-power high-g 3-axis digital accelerometer
MEMS motion sensor: low-power high-g 3-axis digital accelerometer The H3LIS100DL is a low-power highperformance 3-axis linear accelerometer belonging to the “nano” family, with digital I2C/SPI serial interface standard output. The device features ultra-low-power operational modes that allow advanced power saving and smart sleep-to-wakeup functions. The H3LIS100DL has a full scale of ±100 g and is capable of measuring accelerations with output data rates from 0.5 Hz to 400 Hz. The H3LIS100DL is available in a small thin plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.
Data sheet Physical Case/Package QFN Mount Surface Mount Number of Pins 24 Technical Axis X, Y, Z Bandwidth 500 Hz Max Operating Temperature 105 °C Max Supply Voltage 3.6 V Min Operating Temperature -40 °C Min Supply Voltage 2.16 V Output Type SPI , I2C Compliance Lead Free Lead Free REACH SVHC No SVHC RoHS Compliant High-performance ultra-low-power 3-axis accelerometer with digital output for industrial applications
Data sheet Physical Case/Package QFN Contact Plating Tin Mount Surface Mount Number of Pins 2400% Technical Axis X, Y, Z Bandwidth 500 Hz Max Operating Temperature 105 °C Min Operating Temperature -40 °C Operating Supply Voltage 3.6 V Output Type SPI , I2C , Digital Compliance RoHS Compliant High-performance motion sensor for automotive applications: ultra-low-power digital output 3-axis accelerometer The AIS3624DQ is available in a small quad flat no-lead (QFN) package (4x4 mm footprint) and is guaranteed to operate over an extended temperature range from -40 °C to +105 °C. This product may be used in a variety of automotive non-safety applications such as: Motion-activated functions Telematic boxes Impact recognition and logging Vibration monitoring and compensation
Data sheet Physical Case/Package LGA Contact Plating Nickel , Gold Number of Pins 14 Technical Axis X, Y, Z Bandwidth 5.3 kHz Interface I2C , SPI Max Operating Temperature 85 °C Max Supply Voltage 3.6 V Max Supply Voltage (DC) 3.6 V Min Operating Temperature -40 °C Min Supply Voltage 1.71 V Min Supply Voltage (DC) 1.71 V Operating Supply Current 2 µA Output Type Digital Sensor Type 3 Axis Dimensions Height 1 mm Length 2.15 mm Width 2.15 mm Compliance Lead Free Lead Free REACH SVHC No SVHC Radiation Hardening No RoHS Compliant MEMS digital output motion sensor: ultra low-power high performance 3-axis “femto” accelerometer Applications ■ Motion activated functions ■ Display orientation ■ Shake control ■ Pedometer ■ Gaming and virtual reality input devices ■ Impact recognition and logging
Data sheet MEMS inertial sensor high performance 3-axis ±2/±6g ultracompact linear accelerometer Physical Case/Package LGA Contact Plating Nickel , Gold Mount Surface Mount Number of Pins 1600% Technical Axis X, Y, Z Bandwidth 2 kHz Max Operating Temperature 85 °C Max Supply Voltage 3.6 V Min Operating Temperature -40 °C Min Supply Voltage 2.4 V Nominal Supply Current 680 µA Output Type Analog Sensitivity 15000 mV/g Dimensions Height 1.33 mm Length 4.15 mm Width 4.15 mm Compliance Lead Free Lead Free Radiation Hardening No RoHS Compliant
Data sheet Physical Case/Package LGA Mount Surface Mount Number of Pins 16 Technical Axis X, Y, Z Bandwidth 500 Hz Interface I2C , SPI Max Operating Temperature 85 °C Max Supply Voltage 3.6 V Min Operating Temperature -40 °C Min Supply Voltage 2.16 V Output Type Digital , SPI , I2C Resolution 16 b Sensor Type 3 Axis Dimensions Depth 3 mm Length 3 mm Compliance Lead Free Lead Free Radiation Hardening No RoHS Compliant MEMS motion sensor: low-power high-g 3-axis digital accelerometer
Data sheet Physical Mount Surface Mount Number of Pins 14 Technical Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Min Operating Temperature -40 °C Min Supply Voltage 3 V Output Current 600 mA Output Voltage 2.8 V Compliance Radiation Hardening No RoHS Compliant Power Management IC (PMIC) For Low Power Handheld Applications 14-WSON -40 to 85
Data sheet Physical Case/Package R Number of Pins 8 Technical Common Mode Rejection Ratio 110 dB Dual Supply Voltage 15 V Gain Bandwidth Product 75 kHz Input Bias Current 20 nA Input Offset Voltage (Vos) 500 µV Max Dual Supply Voltage 18 V Max Operating Temperature 125 °C Max Supply Voltage 36 V Min Dual Supply Voltage 1.5 V Min Operating Temperature -40 °C Min Supply Voltage 3 V Nominal Supply Current 300 µA Number of Amplifiers 2 Number of Channels 2 Number of Circuits 2 Number of Elements 2 Operating Supply Current 350 µA Operating Supply Voltage 28 V Output Current per Channel 25 mA Power Supply Rejection Ratio (PSRR) 110 dB Quiescent Current 150 µA Slew Rate 0.03 V/µs Unity Gain Bandwidth Product 75 kHz Voltage Gain 140 dB Compliance Lead Free Contains Lead Radiation Hardening No RoHS Compliant Rail-to-rail output swing combined with dc accuracy are the key features of the OP495 quad and OP295 dual CBCMOS operational amplifiers. By using a bipolar front end, lower noise and higher accuracy than those of CMOS designs have been achieved. Both input and output ranges include the negative supply, providing the user with zero-in/zero-out capability. For users of 3.3 V systems such as lithium batteries, the OP295/OP495 are specified for 3 V operation. Maximum offset voltage is specified at 300 µV for 5 V operation, and the open-loop gain is a minimum of 1000 V/mV. This yields performance that can be used to implement high accuracy systems, even in single-supply designs. The ability to swing rail-to-rail and supply 15 mA to the load makes the OP295/OP495 ideal drivers for power transistors and H bridges. This allows designs to achieve higher efficiencies and to transfer more power to the load than previously possible without the use of discrete components. For applications such as transformers that require driving inductive loads, increases in efficiency are also possible. Stability while driving capacitive loads is another benefit of this design over CMOS rail-to-rail amplifiers. This is useful for driving coax cable or large FET transistors. The OP295/OP495 are stable with loads in excess of 300 pF. The OP295 and OP495 are specified over the extended indus-trial (-40°C to +125°C) temperature range. The OP295 is available in 8-lead PDIP and 8-lead SOIC_N surface-mount packages. The OP495 is available in 14-lead PDIP and 16-lead SOIC_W surface-mount packages. Applications Battery-operated instrumentation Servo amplifiers Actuator drives Sensor conditioners Power supply control
Data sheet Physical Case/Package QFN Mount Surface Mount Number of Pins 32 Technical Max Operating Temperature 85 °C Min Operating Temperature -40 °C Operating Supply Current 6 mA Compliance RoHS Compliant The AT73C213B is a fully integrated, low-cost, combined stereo audio DAC and audio power amplifier circuit targeted for Li-Ion or Ni-Mh battery powered devices such as mobile phones, smartphones, PDA, DECT phones, digital still cameras, music players or any other type of handheld device where an audio interface is needed. Power Management and Analog Companions (PMAAC) Audio Interface for Portable Handsets
Data sheet Physical Case/Package VQFN Contact Plating Gold Mount Surface Mount Number of Pins 16 Weight 0.00085 oz Technical Bandwidth 35 MHz High Level Output Current 200 mA Low Level Output Current 200 mA Max Operating Temperature 85 °C Max Supply Current 400 nA Max Supply Voltage 4.3 V Min Operating Temperature -40 °C Min Supply Voltage 1.65 V Number of Channels 4 Number of Inputs 4 Number of Outputs 8 On-State Resistance 450 mΩ Operating Supply Current 15 nA Operating Supply Voltage 3 V Polarity Non-Inverting Supply Type Single Throw Configuration SPDT Turn-Off Delay Time 32 ns Turn-On Delay Time 23 ns Dimensions Height 0.95 mm Length 3.15 mm Width 3.15 mm Compliance Lead Free Lead Free REACH SVHC No SVHC Radiation Hardening No RoHS Compliant The TS3A44159 is a bidirectional 4-channel single pole double-throw (SPDT) analog switch with two control inputs, which is designed to operate from 1.65V to 4.3 V. This device is also known as a 2 channel double-pole double-throw (DPDT) configuration. Itoffers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature that prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications
Data sheet Physical Case/Package SOIC Contact Plating Tin Mount Surface Mount Number of Pins 16 Technical High Level Output Current 30 mA Logic Function Multiplexer Max Dual Supply Voltage 18 V Max Operating Temperature 70 °C Max Power Dissipation 762 mW Max Supply Voltage 36 V Min Dual Supply Voltage 4.5 V Min Operating Temperature 0 °C Min Supply Voltage 4.5 V Number of Channels 1 Number of Circuits 1 On-State Resistance 350 Ω Operating Supply Current 300 µA Operating Supply Voltage 28 V Propagation Delay 250 ns Supply Type Single , Dual Throw Configuration DPST Turn-Off Delay Time 200 ns Turn-On Delay Time 250 ns Dimensions Height 2.35 mm Length 10.5 mm Width 7.6 mm Compliance Lead Free Lead Free REACH SVHC Unknown Radiation Hardening No RoHS Compliant The MAX354/MAX355 fault-protected multiplexers (muxes) use a series N-channel, P-channel, N-channel structure that protects the devices from overvoltage up to 40V beyond the supply rails during power-up, powerdown, and fault conditions. The MAX354/MAX355 also protect sensitive circuit components against voltages near or beyond the normal supplies. The MAX354 single 8-channel mux and the MAX355 dual 4-channel mux protect analog signals while operating from a single 4.5V to 36V supply or ±4.5V to ±18V dual supplies. These muxes have 350Ω on-resistance and can be used for demultiplexing as well as multiplexing. Input leakage current is less than 0.5nA at +25°C and less than 5nA at +85°C. All digital inputs have 0.8V and 2.4V logic thresholds, ensuring both TTL and CMOS logic compatibility without pull-up resistors. Break-before-make operation is guaranteed and power consumption is less than 1.5mW. Applications Data-Acquisition Systems Industrial and Process Control Avionics ATE Equipment Signal Routing Redundant/Backup Systems
