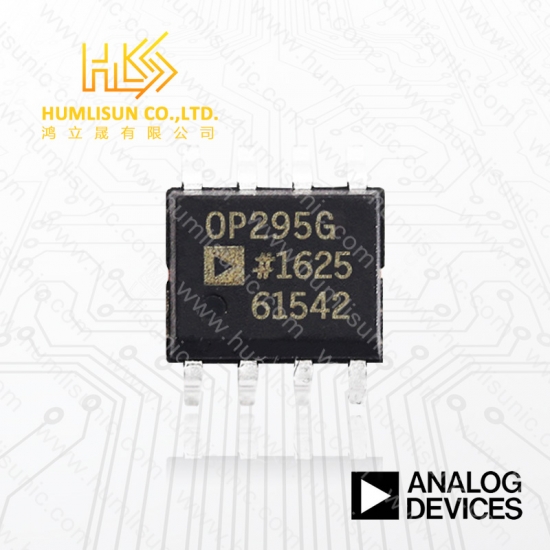

OP295GSZ

OP295GSZ

  • Part No .:

    OP295GSZ
  • Manufacturer:

    Analog devices
  • Description:

    IC
  • Remark:

    new origin
  • Last Updated:

    2019/12/14
  • Product Details

Data sheet

Physical
Case/Package R
Number of Pins 8
Technical
Common Mode Rejection Ratio 110 dB
Dual Supply Voltage 15 V
Gain Bandwidth Product 75 kHz
Input Bias Current 20 nA
Input Offset Voltage (Vos) 500 µV
Max Dual Supply Voltage 18 V
Max Operating Temperature 125 °C
Max Supply Voltage 36 V
Min Dual Supply Voltage 1.5 V
Min Operating Temperature -40 °C
Min Supply Voltage 3 V
Nominal Supply Current 300 µA
Number of Amplifiers 2
Number of Channels 2
Number of Circuits 2
Number of Elements 2
Operating Supply Current 350 µA
Operating Supply Voltage 28 V
Output Current per Channel 25 mA
Power Supply Rejection Ratio (PSRR) 110 dB
Quiescent Current 150 µA
Slew Rate 0.03 V/µs
Unity Gain Bandwidth Product 75 kHz
Voltage Gain 140 dB
Compliance
Lead Free Contains Lead
Radiation Hardening No
RoHS Compliant


Rail-to-rail output swing combined with dc accuracy are the key features of the OP495 quad and OP295 dual CBCMOS operational amplifiers. By using a bipolar front end, lower noise and higher accuracy than those of CMOS designs have been achieved. Both input and output ranges include the negative supply, providing the user with zero-in/zero-out capability. For users of 3.3 V systems such as lithium batteries, the OP295/OP495 are specified for 3 V operation. Maximum offset voltage is specified at 300 µV for 5 V operation, and the open-loop gain is a minimum of 1000 V/mV. This yields performance that can be used to implement high accuracy systems, even in single-supply designs. The ability to swing rail-to-rail and supply 15 mA to the load makes the OP295/OP495 ideal drivers for power transistors and H bridges. This allows designs to achieve higher efficiencies and to transfer more power to the load than previously possible without the use of discrete components. For applications such as transformers that require driving inductive loads, increases in efficiency are also possible. Stability while driving capacitive loads is another benefit of this design over CMOS rail-to-rail amplifiers. This is useful for driving coax cable or large FET transistors. The OP295/OP495 are stable with loads in excess of 300 pF. The OP295 and OP495 are specified over the extended indus-trial (-40°C to +125°C) temperature range. The OP295 is available in 8-lead PDIP and 8-lead SOIC_N surface-mount packages. The OP495 is available in 14-lead PDIP and 16-lead SOIC_W surface-mount packages. Applications Battery-operated instrumentation Servo amplifiers Actuator drives Sensor conditioners Power supply control
