Part No .:

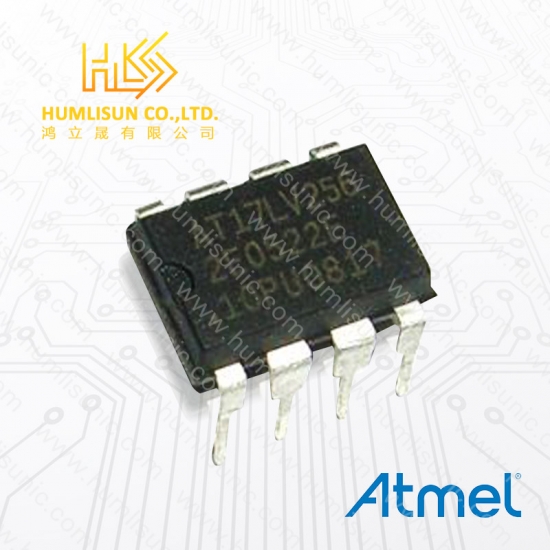

AT17LV256-10JIManufacturer:
AtemlDescription:
ICRemark:
new originLast Updated:
2025/06/25
|
Physical
|
|
| Case/Package | LCC |
| Mount | Surface Mount |
| Number of Pins | 20 |
|
Technical
|
|
| Density | 256 kb |
| Frequency | 12.5 MHz |
| Interface | Serial , 2-Wire |
| Max Operating Temperature | 85 °C |
| Max Supply Voltage | 5.5 V |
| Memory Size | 256 kb |
| Memory Type | EEPROM |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 4.5 V |
| Nominal Supply Current | 10 mA |
|
Compliance
|
|
| Lead Free | Contains Lead |
| RoHS | Compliant |
Data sheet Physical Case/Package PDIP Mount Through Hole Number of Pins 8 Technical Density 64 kb Frequency 12.5 MHz Interface Serial , 2-Wire Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 64 kb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 4.5 V The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easyto-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20- lead PLCC, 20-lead SOIC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode.
Data sheet Physical Mount Surface Mount Number of Pins 8 Technical Density 8 Mb Frequency 33 MHz Interface Serial , 2-Wire Max Frequency 33 MHz Max Operating Temperature 85 °C Max Supply Voltage 3.63 V Memory Size 8 Mb Min Operating Temperature -40 °C Min Supply Voltage 2.97 V Nominal Supply Current 20 mA Operating Supply Current 20 mA Operating Supply Voltage 3.3 V Compliance Lead Free Contains Lead RoHS Non-Compliant The AT17F Series of In-System Programmable Configuration PROMs (Configurators) provide an easy-to-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17F Series device is packaged in the 8-lead LAP, 20-lead PLCC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17F Series Configurator uses a simple serial-access procedure to configure one or more FPGA devices. The AT17F Series Configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable. FPGA Configuration Flash Memory
Data sheet Physical Case/Package TQFP Number of Pins 44 Technical Max Frequency 33 MHz Max Operating Temperature 85 °C Max Supply Voltage 3.63 V Memory Size 8 Mb Min Operating Temperature -40 °C Min Supply Voltage 2.97 V Operating Supply Current 20 mA Compliance Lead Free Contains Lead RoHS Compliant The AT17F Series of In-System Programmable Configuration PROMs (Configurators) provide an easy-to-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17F Series device is packaged in the 8-lead LAP, 20-lead PLCC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17F Series Configurator uses a simple serial-access procedure to configure one or more FPGA devices. The AT17F Series Configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.
Data sheet Physical Number of Pins 8 Technical Frequency 15 MHz Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 1 Mb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 4.5 V Nominal Supply Current 10 mA Compliance Lead Free Contains Lead RoHS Compliant The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easyto-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20- lead PLCC, 20-lead SOIC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode. The AT17LV series configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.
Data sheet Physical Case/Package PDIP Contact Plating Tin Mount Through Hole Number of Pins 8 Weight 0.032805 oz Technical Density 512 kb Interface Serial , 2-Wire Max Frequency 15 MHz Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 512 kb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 3 V Nominal Supply Current 10 mA Operating Supply Current 10 mA Compliance Lead Free Lead Free Radiation Hardening No RoHS Non-Compliant The Atmel® AT17LVxxxA FPGA configuration EEPROMs (Configurators) provide an easy-to-use, cost-effective configuration memory solution for FPGAs. The AT17LVxxxA are packaged in 8-lead PDIP and 20-lead PLCC options. The AT17LVxxxA configurator uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices support a write protection mechanism within its programming mode.
Data sheet Physical Contact Plating Gold Mount Surface Mount Number of Pins 8 Technical Density 1 Mb Frequency 15 MHz Interface Serial , 2-Wire Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 1 Mb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 3 V Nominal Supply Current 10 mA Voltage 5 V Compliance Lead Free Lead Free Radiation Hardening No RoHS Non-Compliant The AT17LV FPGA Configuration EEPROMs (Configurators) provide an easy-touse, cost-effective configuration memory solution for Field Programmable Gate Arrays. The AT17LV devices are packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20-lead PLCC, 20-lead SOIC and 44-lead TQFP options(Table 1). The AT17LV Configurators use a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function during programming. These devices also support a write protection mechanism within its programming mode.
Data sheet Physical Case/Package PLCC Mount Surface Mount Number of Pins 20 Technical Density 1 Mb Frequency 15 MHz Interface Serial , 2-Wire Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 1 Mb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 3 V Nominal Supply Current 10 mA Compliance Lead Free Contains Lead Radiation Hardening No RoHS Compliant The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easyto-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20- lead PLCC, 20-lead SOIC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode. The AT17LV series configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.
Data sheet Physical Case/Package QFN Mount Surface Mount Number of Pins 32 Technical Max Operating Temperature 85 °C Min Operating Temperature -40 °C Operating Supply Current 6 mA Compliance RoHS Compliant The AT73C213B is a fully integrated, low-cost, combined stereo audio DAC and audio power amplifier circuit targeted for Li-Ion or Ni-Mh battery powered devices such as mobile phones, smartphones, PDA, DECT phones, digital still cameras, music players or any other type of handheld device where an audio interface is needed. Power Management and Analog Companions (PMAAC) Audio Interface for Portable Handsets

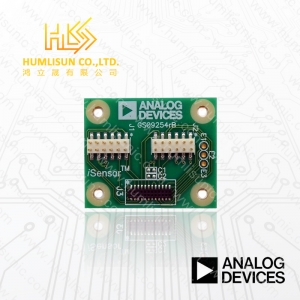

Data sheet Physical Mount PCB Technical Evaluation Kit Yes Interface SPI , Serial Operating Supply Voltage 3.3 V Sensor Type Accelerometer , Gyroscope , 3 Axis Compliance Lead Free Contains Lead REACH SVHC No SVHC RoHS Compliant The ADIS16445 iSensor® device is a complete inertial system that includes a triaxial gyroscope and a triaxial accelerometer. Each sensor in the ADIS16445 combines industry-leading iMEMS® technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias, alignment, and linear accel-eration (gyroscope bias). As a result, each sensor has its own dynamic compensation formulas that provide accurate sensor measurements. The ADIS16445 provides a simple, cost-effective method for integrating accurate, multiaxis inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems. The SPI and register structures provide a simple interface for data collection and configuration control. The ADIS16445 has a compatible pinout for systems that currently use other Analog Devices, Inc., IMU products, such as the ADIS16334 or the ADIS16485. Applications Platform stabilization and control Navigation Robotics

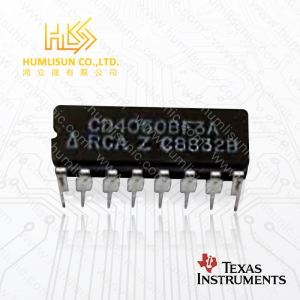

Data sheet Physical Case/Package CDIP Contact Plating Tin , Lead Mount Through Hole Number of Pins 16 Technical High Level Output Current -5.2 mA Logic Function Buffer Low Level Output Current 26 mA Max Operating Temperature 125 °C Max Supply Voltage 20 V Min Operating Temperature -55 °C Min Supply Voltage -500 mV Number of Bits 6 Number of Channels 6 Number of Elements 6 Number of Inputs 6 Number of Outputs 6 Polarity Non-Inverting Propagation Delay 140 ns Quiescent Current 20 µA Turn-On Delay Time 140 ns Compliance Lead Free Contains Lead Radiation Hardening No RoHS Compliant CMOS Hex Non-Inverting Buffer/Converter 16-CDIP -55 to 125
Data sheet Physical Case/Package VQFN Contact Plating Gold Mount Surface Mount Number of Pins 16 Weight 0.00085 oz Technical Bandwidth 35 MHz High Level Output Current 200 mA Low Level Output Current 200 mA Max Operating Temperature 85 °C Max Supply Current 400 nA Max Supply Voltage 4.3 V Min Operating Temperature -40 °C Min Supply Voltage 1.65 V Number of Channels 4 Number of Inputs 4 Number of Outputs 8 On-State Resistance 450 mΩ Operating Supply Current 15 nA Operating Supply Voltage 3 V Polarity Non-Inverting Supply Type Single Throw Configuration SPDT Turn-Off Delay Time 32 ns Turn-On Delay Time 23 ns Dimensions Height 0.95 mm Length 3.15 mm Width 3.15 mm Compliance Lead Free Lead Free REACH SVHC No SVHC Radiation Hardening No RoHS Compliant The TS3A44159 is a bidirectional 4-channel single pole double-throw (SPDT) analog switch with two control inputs, which is designed to operate from 1.65V to 4.3 V. This device is also known as a 2 channel double-pole double-throw (DPDT) configuration. Itoffers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature that prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications
