Part No .:

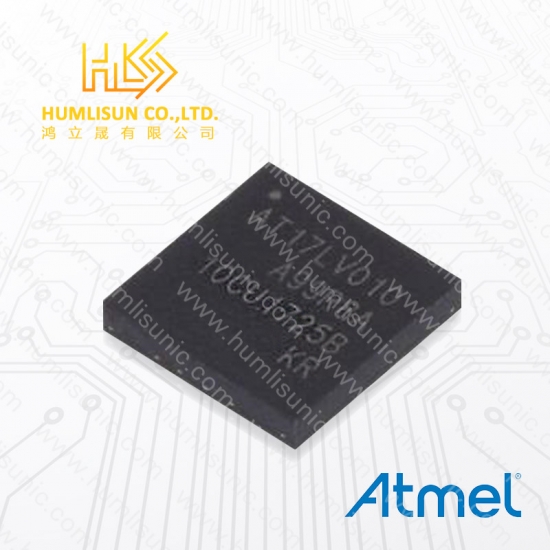

AT17LV010-10CUManufacturer:
AtmelDescription:
ICRemark:
new originLast Updated:
2025/10/30
|
Physical
|
|
| Contact Plating | Gold |
| Mount | Surface Mount |
| Number of Pins | 8 |
|
Technical
|
|
| Density | 1 Mb |
| Frequency | 15 MHz |
| Interface | Serial , 2-Wire |
| Max Operating Temperature | 85 °C |
| Max Supply Voltage | 5.5 V |
| Memory Size | 1 Mb |
| Memory Type | EEPROM |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 3 V |
| Nominal Supply Current | 10 mA |
| Voltage | 5 V |
|
Compliance
|
|
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
Data sheet Physical Case/Package PDIP Mount Through Hole Number of Pins 8 Technical Density 64 kb Frequency 12.5 MHz Interface Serial , 2-Wire Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 64 kb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 4.5 V The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easyto-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20- lead PLCC, 20-lead SOIC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode.
Data sheet Physical Mount Surface Mount Number of Pins 8 Technical Density 8 Mb Frequency 33 MHz Interface Serial , 2-Wire Max Frequency 33 MHz Max Operating Temperature 85 °C Max Supply Voltage 3.63 V Memory Size 8 Mb Min Operating Temperature -40 °C Min Supply Voltage 2.97 V Nominal Supply Current 20 mA Operating Supply Current 20 mA Operating Supply Voltage 3.3 V Compliance Lead Free Contains Lead RoHS Non-Compliant The AT17F Series of In-System Programmable Configuration PROMs (Configurators) provide an easy-to-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17F Series device is packaged in the 8-lead LAP, 20-lead PLCC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17F Series Configurator uses a simple serial-access procedure to configure one or more FPGA devices. The AT17F Series Configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable. FPGA Configuration Flash Memory
Data sheet Physical Case/Package TQFP Number of Pins 44 Technical Max Frequency 33 MHz Max Operating Temperature 85 °C Max Supply Voltage 3.63 V Memory Size 8 Mb Min Operating Temperature -40 °C Min Supply Voltage 2.97 V Operating Supply Current 20 mA Compliance Lead Free Contains Lead RoHS Compliant The AT17F Series of In-System Programmable Configuration PROMs (Configurators) provide an easy-to-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17F Series device is packaged in the 8-lead LAP, 20-lead PLCC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17F Series Configurator uses a simple serial-access procedure to configure one or more FPGA devices. The AT17F Series Configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.
Data sheet Physical Number of Pins 8 Technical Frequency 15 MHz Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 1 Mb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 4.5 V Nominal Supply Current 10 mA Compliance Lead Free Contains Lead RoHS Compliant The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easyto-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20- lead PLCC, 20-lead SOIC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode. The AT17LV series configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.
Data sheet Physical Case/Package PDIP Contact Plating Tin Mount Through Hole Number of Pins 8 Weight 0.032805 oz Technical Density 512 kb Interface Serial , 2-Wire Max Frequency 15 MHz Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 512 kb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 3 V Nominal Supply Current 10 mA Operating Supply Current 10 mA Compliance Lead Free Lead Free Radiation Hardening No RoHS Non-Compliant The Atmel® AT17LVxxxA FPGA configuration EEPROMs (Configurators) provide an easy-to-use, cost-effective configuration memory solution for FPGAs. The AT17LVxxxA are packaged in 8-lead PDIP and 20-lead PLCC options. The AT17LVxxxA configurator uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices support a write protection mechanism within its programming mode.
Data sheet Physical Case/Package PLCC Mount Surface Mount Number of Pins 20 Technical Density 1 Mb Frequency 15 MHz Interface Serial , 2-Wire Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 1 Mb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 3 V Nominal Supply Current 10 mA Compliance Lead Free Contains Lead Radiation Hardening No RoHS Compliant The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easyto-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20- lead PLCC, 20-lead SOIC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode. The AT17LV series configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.
Data sheet Physical Case/Package LCC Mount Surface Mount Number of Pins 20 Technical Density 256 kb Frequency 12.5 MHz Interface Serial , 2-Wire Max Operating Temperature 85 °C Max Supply Voltage 5.5 V Memory Size 256 kb Memory Type EEPROM Min Operating Temperature -40 °C Min Supply Voltage 4.5 V Nominal Supply Current 10 mA Compliance Lead Free Contains Lead RoHS Compliant The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easyto-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20- lead PLCC, 20-lead SOIC, 44-lead PLCC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode. The AT17LV series configurators can be programmed with industry-standard programmers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.
Data sheet Physical Case/Package QFN Mount Surface Mount Number of Pins 32 Technical Max Operating Temperature 85 °C Min Operating Temperature -40 °C Operating Supply Current 6 mA Compliance RoHS Compliant The AT73C213B is a fully integrated, low-cost, combined stereo audio DAC and audio power amplifier circuit targeted for Li-Ion or Ni-Mh battery powered devices such as mobile phones, smartphones, PDA, DECT phones, digital still cameras, music players or any other type of handheld device where an audio interface is needed. Power Management and Analog Companions (PMAAC) Audio Interface for Portable Handsets

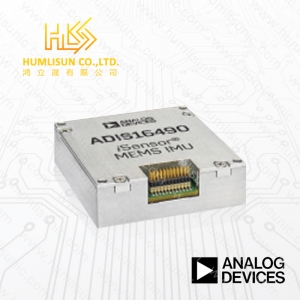

Data sheet Physical Case/Package Module Contact Plating Tin Mount Screw Number of Pins 24 Technical -3db Bandwidth 330 Hz Interface SPI Max Operating Temperature 105 °C Max Supply Voltage 5.25 V Min Operating Temperature -40 °C Min Supply Voltage 4.75 V Nominal Supply Current 45 mA Operating Supply Current 45 mA Output Type SPI Sensor Type Accelerometer , Gyroscope , Magnetometer , 3 Axis Dimensions Height 23.504 mm Length 23.45 mm Width 22.964 mm Compliance Lead Free Contains Lead REACH SVHC No SVHC RoHS Compliant The ADIS16400/ADIS16405 iSensor® products are complete inertial systems that include a triaxal gyroscope, a triaxial accelerometer, and a triaxial magnetometer. The ADIS16400/ ADIS16405 combine industry-leading iMEMS® technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias, alignment, and linear acceleration (gyroscope bias). As a result, each sensor has its own dynamic compensation for correction formulas that provide accurate sensor measurements over a temperature range of -40°C to +85°C. The magnetometers employ a self-correction function to provide accurate bias performance over temperature, as well. The ADIS16400/ADIS16405 provide a simple, cost-effective method for integrating accurate, multi-axis inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems. An improved serial peripheral interface (SPI) and register structure provide faster data collection and configuration control. By using a compatible pinout and the same package as the ADIS1635x and ADIS1636x families, upgrading to the ADIS16400/ADIS16405 requires only firmware changes to accommodate additional sensors and register map updates. These compact modules are approximately 23 mm × 23 mm × 23 mm and provide a flexible connector interface that enables multiple mounting orientation options.
Data sheet Physical Case/Package SOIC Contact Plating Tin Mount Surface Mount Number of Pins 24 Weight 0.025909 oz Technical High Level Output Current -2 mA Interface Serial Low Level Output Current 5 mA Max Input Voltage 5.5 V Max Operating Temperature 70 °C LED DRIVER 8 DIGIT CC, SMD, 7219; LED Driver Application:Displays, Panel Meters; Topology:Common Cathode; No. of Outputs:8; Output Current:320mA; Output Voltage:4.5V; Input Voltage:4V to 5.5V; Dimming Control Type:Analogue / Digital; Operating Temperature Range:0°C to +70°C; Driver Case Style:SOIC; Switching Frequency:10MHz; Base Number:7219; Character Type:8 Digit; Data / Control Interface:Serial 4 Wire; Device Type:LED; IC Generic Number:7219; IC Temperature Range:Commercial; Interface Type:Common Cathode; LED Display Type:7 Segment / Bar Graph; Logic Function Number:7219; No. of Pins:24; No. of Segments:7; Operating Temperature Max:70°C; Operating Temperature Min:0°C; Package / Case:SOIC; Supply Voltage Max:5.5V; Supply Voltage Min:4V; Termination Type:SMD
Data sheet Physical Case/Package VQFN Contact Plating Gold Mount Surface Mount Number of Pins 16 Weight 0.00085 oz Technical Bandwidth 35 MHz High Level Output Current 200 mA Low Level Output Current 200 mA Max Operating Temperature 85 °C Max Supply Current 400 nA Max Supply Voltage 4.3 V Min Operating Temperature -40 °C Min Supply Voltage 1.65 V Number of Channels 4 Number of Inputs 4 Number of Outputs 8 On-State Resistance 450 mΩ Operating Supply Current 15 nA Operating Supply Voltage 3 V Polarity Non-Inverting Supply Type Single Throw Configuration SPDT Turn-Off Delay Time 32 ns Turn-On Delay Time 23 ns Dimensions Height 0.95 mm Length 3.15 mm Width 3.15 mm Compliance Lead Free Lead Free REACH SVHC No SVHC Radiation Hardening No RoHS Compliant The TS3A44159 is a bidirectional 4-channel single pole double-throw (SPDT) analog switch with two control inputs, which is designed to operate from 1.65V to 4.3 V. This device is also known as a 2 channel double-pole double-throw (DPDT) configuration. Itoffers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature that prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications
