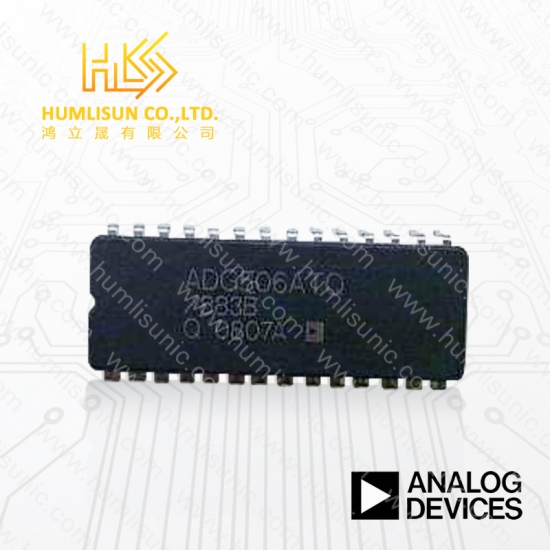

Part No .:
ADG506ATQ/883BManufacturer:
Analog DevicesDescription:
ICRemark:
new originLast Updated:
2024/09/16
|
Physical
|
|
| Case/Package | CDIP |
| Number of Pins | 28 |
|
Technical
|
|
| Interface | Parallel |
| Max Dual Supply Voltage | 16.5 V |
| Max Operating Temperature | 125 °C |
| Max Power Dissipation | 470 mW |
| Max Supply Voltage | 16.5 V |
| Min Dual Supply Voltage | 10.8 V |
| Min Operating Temperature | -55 °C |
| Min Supply Voltage | 10.8 V |
| Nominal Supply Current | 1.5 mA |
| Number of Channels | 1 |
| Number of Inputs | 16 |
| Number of Outputs | 1 |
| On-State Resistance | 700 Ω |
| Operating Supply Voltage | 15 V |
| Propagation Delay | 300 ns |
| Supply Type | Single , Dual |
| Turn-Off Delay Time | 450 ns |
| Turn-On Delay Time | 450 ns |
|
Compliance
|
|
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
The ADG506A is a CMOS monolithic analog multiplexer with 16 channels. The ADG506A switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. It has TTL and 5 V CMOS logic compatible digital inputs. The ADG506A is designed on an enhanced LC2MOS process, which gives an increased signal capability of VSS to VDD and enables operation over a wide range of supply voltages. The devices can operate comfortably anywhere in the 10.8 V to 16.5 V single or dual supply range. This multiplexer also features high switching speeds and low RON.
