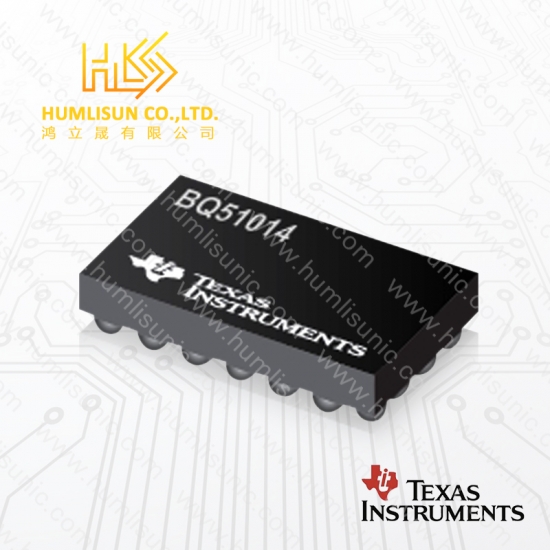

Part No .:
BQ51014YFPTManufacturer:
Texas InstrumentsDescription:
ICRemark:
new originLast Updated:
2025/11/17
|
Physical
|
|
| Contact Plating | Copper , Tin , Silver |
| Mount | Surface Mount |
| Number of Pins | 28 |
|
Technical
|
|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | 0 °C |
| Operating Supply Current | 8 mA |
| Output Current | 1.5 A |
|
Dimensions
|
|
| Height | 0.4 mm |
| Length | 3 mm |
|
Compliance
|
|
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
Data sheet Physical Number of Pins 48 Technical Max Operating Temperature 85 °C Min Operating Temperature 0 °C Min Supply Voltage (DC) 3 V Output Power 20 W Compliance Lead Free Lead Free RoHS Non-Compliant The TAS5709 is a 20-W, efficient, digital audio-power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital-audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.The TAS5709 is a slave-only device receiving all clocks from external sources. The TAS5709 operates with a PWM carrier between a 384-kHz switching rate and a 352-KHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz. The TAS5709A is identical in function to the TAS5709, but has a unique I 2 C device address. The address of the TAS5709 is 0x36. The address of the TAS5709A is 0x3A.
Data sheet Physical Case/Package SOIC Mount Surface Mount Number of Pins 24 Technical Conversion Rate 15 kS/s Dual Supply Voltage 5 V Interface SPI , Serial Max Dual Supply Voltage 5.25 V Max Operating Temperature 85 °C Min Dual Supply Voltage 4.75 V Min Operating Temperature -40 °C Number of A/D Converters 1 Number of Analog Inputs 1 Number of Bits 20 Number of Channels 1 Number of Converters 1 Number of Elements 1 Polarity Bipolar , Unipolar Resolution 20 b Sampling Rate 15 kS/s Supply Type Dual , Analog , Digital Compliance Lead Free Lead Free Radiation Hardening No RoHS Compliant 20-BIT ANALOG-TO-DIGITAL CONVERTER The DDC101 is a precision, wide dynamic range, charge digitizing A/D converter with 20-bit resolution. Lowlevel current output devices, such as photosensors, can bedirectly connected to its input. The most stringent accuracy requirements of many unipolar output sensor applications occur at low signal levels. To meet this requirement, Burr-Brown developed the adaptive delta odulation architecture of the DDC101 to provide linearly improving noise and linearity errors as the input signal level decreases. The DDC101 combines the functions of current-to-voltage conversion, integration, input programmable gain amplification, A/D conversion, and digital filtering to produce precision, wide dynamic range results. The input signal can be a low level current connected directly into the unit or a voltage connected through a user selected resistor. Although the DDC101 is optimized for unipolar signals, it can also accurately digitize bipolar input signals. The patented delta modulation topology combines charge integration and digitization functions. Oversampling and digital filtering reduce system noise dramatically. Correlated Double Sampling (CDS) captures and eliminates steady state and conversion cycle dependent offset and switching errors that are not eliminated with conventional analog circuits. The DDC101 block diagram is shown below. During conversion, the input signal is collected on the Internal integration capacitance for a user determined integration period. A high precision, autozeroed comparator samples the analog input node. Tracking logic updates the internal high resolution D/A converter at a 2MHz rate to maintain the analog input at virtual ground. A user programmable digital filter oversamples the tracking logic’s output. The digital filter passes a low noise, high resolution digital output to the serial I/O register. The serial outputs of multiple DDC101 units can be easily connected together in series or parallel if desired to minimize interconnections.
Data sheet Physical Mount Surface Mount Number of Pins 5 Technical Max Operating Temperature 85 °C Max Supply Voltage 2.7 V Min Operating Temperature -40 °C Min Supply Voltage 800 mV Number of Channels 1 Number of Inputs 1 Number of Outputs 1 On-State Resistance 15 Ω Operating Supply Current 10 µA Throw Configuration SPST Compliance RoHS Compliant This single analog switch is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation. The SN74AUC1G66 can handle both analog and digital signals. The combined AC and DC signal has to be between VCC and GND for it to be transmitted in either direction. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems
Data Sheet Physical Mount Surface Mount Number of Pins 40 Technical Max Operating Temperature 85 °C Min Operating Temperature -40 °C Operating Supply Current 60 µA Dimensions Length 5 mm Compliance Lead Free Contains Lead Radiation Hardening No RoHS Compliant The LP3971 is a multi-function, programmable Power Management Unit, designed especially for advanced application processors. The LP3971 is optimized for low power handheld applications and provides 6 low dropout, low noise linear regulators, three DC/DC magnetic buck regulators, a back-up battery charger and two GPIO’s. A high speed serial interface is included to program individual regulator output voltages as well as on/off control.
Data sheet Physical Mount Surface Mount Number of Pins 48 Technical Max Operating Temperature 85 °C Min Operating Temperature -40 °C Quiescent Current 30 µA Compliance Lead Free Contains Lead Radiation Hardening No RoHS Compliant The LP3910 is a programmable system power management unit optimized for HDD-based portable media players. The device incorporates two low-dropout LDO voltage regulators, two integrated buck DC-DC converters with dynamic voltage scaling (DVS), one wide load-range buck-boost DC-DC converter with programmable output voltage, a 4-channel, 8-bit ADC, and a dual-source lithium-ion or lithium-polymer battery charger. The LP3910 also incorporates some advanced battery management functions such as battery temperature measurement, reverse current blocking for USB, LED-charger status indication, thermally regulated internal power FETs, battery-voltage monitoring, overcurrent protection, and a 10-hour safety timer. The device is programmable through a 400-kHz I2C-compatible interface. The LP3910 is available in a thermally-enhanced 6-mm × 6-mm × 0.8-mm 48-pin WQFN package.
Data Sheet Physical Case/Package SOT-70-6 Mount Surface Mount Weight 8.8E-05 oz Technical Bandwidth 100 MHz Max Operating Temperature 85 °C Max Supply Current 100 nA Max Supply Voltage 5.5 V Min Operating Temperature -40 °C Min Supply Voltage 1.65 V Number of Channels 1 On-State Resistance 1.1 Ω Operating Supply Current 100 nA Supply Type Single Throw Configuration SPDT Turn-Off Delay Time 15 ns Turn-On Delay Time 20 ns Compliance Lead Free Lead Free Radiation Hardening No RoHS Compliant The TS5A3159 device is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance and an excellent N-state resistance matching, with the break-before-make feature to prevent signal istortion during the transferring of a signal from one channel to another. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio aplications.
Data sheet Physical Mount Surface Mount Technical Max Operating Temperature 85 °C Min Operating Temperature -40 °C On-State Resistance 15 Ω Operating Supply Current 10 µA Throw Configuration SPDT Compliance RoHS Compliant SN74AUC2G53 SINGLE-POLE DOUBLE-THROW (SPDT) ANALOG SWITCH OR 2:1 ANALOG MULTIPLEXER/DEMULTIPLEXER This analog switch is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.1-V to 2.7-V VCC operation. The SN74AUC2G53 can handle both analog and digital signals. The device permits signals with amplitudes of up to VCC (peak) to be transmitted in either direction.
Data sheet Physical Case/Package VQFN Contact Plating Gold Mount Surface Mount Number of Pins 16 Weight 0.00085 oz Technical Bandwidth 35 MHz High Level Output Current 200 mA Low Level Output Current 200 mA Max Operating Temperature 85 °C Max Supply Current 400 nA Max Supply Voltage 4.3 V Min Operating Temperature -40 °C Min Supply Voltage 1.65 V Number of Channels 4 Number of Inputs 4 Number of Outputs 8 On-State Resistance 450 mΩ Operating Supply Current 15 nA Operating Supply Voltage 3 V Polarity Non-Inverting Supply Type Single Throw Configuration SPDT Turn-Off Delay Time 32 ns Turn-On Delay Time 23 ns Dimensions Height 0.95 mm Length 3.15 mm Width 3.15 mm Compliance Lead Free Lead Free REACH SVHC No SVHC Radiation Hardening No RoHS Compliant The TS3A44159 is a bidirectional 4-channel single pole double-throw (SPDT) analog switch with two control inputs, which is designed to operate from 1.65V to 4.3 V. This device is also known as a 2 channel double-pole double-throw (DPDT) configuration. Itoffers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature that prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications
Data sheet Physical Mount Surface Mount Number of Pins 8 Technical Max Operating Temperature 85 °C Max Supply Current 1 µA Max Supply Voltage 5.5 V Min Operating Temperature -40 °C Min Supply Voltage 1.65 V Number of Channels 1 Number of Circuits 2 Number of Inputs 2 Number of Outputs 1 On-State Resistance 13 Ω Operating Supply Current 1 µA Operating Supply Voltage 5 V Polarity Non-Inverting Supply Type Single Throw Configuration SPDT Turn-Off Delay Time 9.4 ns Turn-On Delay Time 10.3 ns Compliance Lead Free Lead Free RoHS Compliant IC SWITCH SPDT 8DSBGA
Data sheet Physical Mount Surface Mount Number of Pins 24 Technical Max Operating Temperature 85 °C Min Operating Temperature -40 °C Operating Supply Current 60 µA Quiescent Current 30 µA Switching Frequency 2 MHz Dimensions Length 5 mm Compliance Lead Free Contains Lead Radiation Hardening No RoHS Compliant Dual High-Current Step-Down DC/DC and Dual Linear Regulator with I2C Compatible Interface 24-WQFN
Date sheet Physical Case/Package Module Mount Surface Mount Number of Pins 24 Technical Max Operating Temperature 125 °C Min Operating Temperature -40 °C Operating Supply Current 3.6 mA Compliance RoHS Compliant IC TFT PANEL MODULE 24-LLP
Data sheet Physical Mount Surface Mount Number of Pins 16 Technical Max Operating Temperature 125 °C Min Input Voltage 2.2 V Min Operating Temperature 0 °C Number of Outputs 1 Output Current 1.5 A Quiescent Current 400 µA Compliance RoHS Compliant IC REGULATOR DDR TERM 16WQFN
