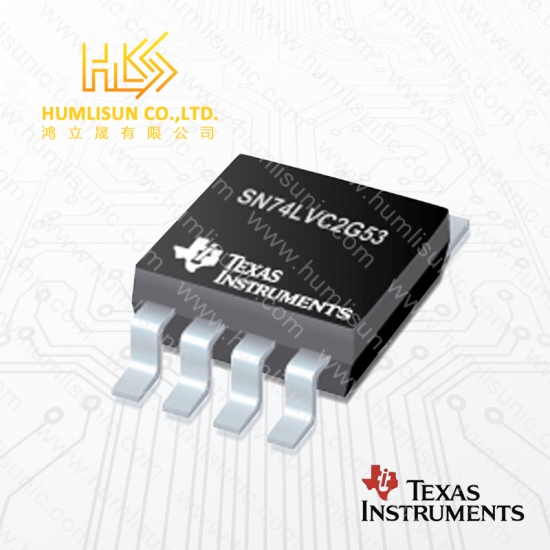

Part No .:
SN74LVC2G53YZARManufacturer:
Texas InstrumentsDescription:
ICRemark:
new originLast Updated:
2025/12/01
|
Physical
|
|
| Mount | Surface Mount |
| Number of Pins | 8 |
|
Technical
|
|
| Max Operating Temperature | 85 °C |
| Max Supply Current | 1 µA |
| Max Supply Voltage | 5.5 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 1.65 V |
| Number of Channels | 1 |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| On-State Resistance | 13 Ω |
| Operating Supply Current | 1 µA |
| Operating Supply Voltage | 5 V |
| Polarity | Non-Inverting |
| Supply Type | Single |
| Throw Configuration | SPDT |
| Turn-Off Delay Time | 9.4 ns |
| Turn-On Delay Time | 10.3 ns |
|
Compliance
|
|
| Lead Free | Lead Free |
| RoHS | Compliant |
