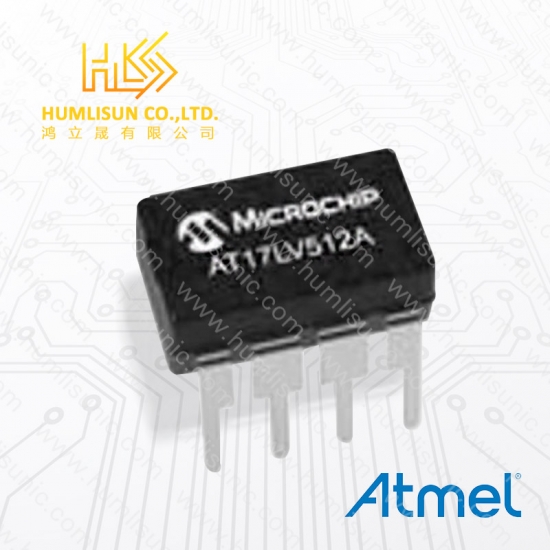

Part No .:
AT17LV512A-10PUManufacturer:
AtmelDescription:
ICRemark:
new originLast Updated:
2024/04/23
|
Physical
|
|
| Case/Package | PDIP |
| Contact Plating | Tin |
| Mount | Through Hole |
| Number of Pins | 8 |
| Weight | 0.032805 oz |
|
Technical
|
|
| Density | 512 kb |
| Interface | Serial , 2-Wire |
| Max Frequency | 15 MHz |
| Max Operating Temperature | 85 °C |
| Max Supply Voltage | 5.5 V |
| Memory Size | 512 kb |
| Memory Type | EEPROM |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 3 V |
| Nominal Supply Current | 10 mA |
| Operating Supply Current | 10 mA |
|
Compliance
|
|
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
