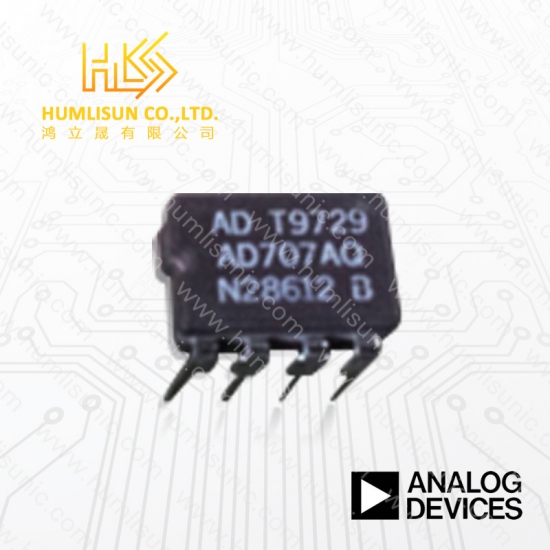

AD707AQ

AD707AQ

  • Part No .:

    AD707AQ
  • Manufacturer:

    Analog devices
  • Description:

    IC
  • Remark:

    new origin
  • Last Updated:

    2019/12/14
  • Product Details

Data sheet

Physical
Case/Package
CDIP
Mount Through Hole
Number of Pins
8
Technical
Common Mode Rejection Ratio 120 dB
Input Offset Voltage (Vos) 90 µV
Max Dual Supply Voltage 22 V
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Number of Elements 1
Power Dissipation 500 mW
Power Supply Rejection Ratio (PSRR) 110 dB
Slew Rate 0.3 V/µs
Compliance
RoHS Non-Compliant

SEND A MESSAGE
You can contact us any way that is convenient for you. We are available 24/7 via fax, email or telephone.
AD707AQ
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Related Product

AD

ADG211AKP

data sheet Physical   Case/Package PLCC Contact Plating Tin Number of Pins 20 Technical   Dual Supply Voltage 15 V High Level Output Current 30 mA Interface Parallel Max Dual Supply Voltage 22 V Max Operating Temperature 85 °C Max Power Dissipation 470 mW Max Supply Current 1 mA Max Supply Voltage 25 V Min Operating Temperature -40 °C Number of Bits 4 Number of Channels 4 Number of Circuits 4 Number of Inputs 4 Number of Outputs 4 On-State Resistance 115 Ω Operating Supply Voltage 5 V Polarity Non-Inverting Supply Type Dual Throw Configuration SPST Turn-Off Delay Time 450 ns Turn-On Delay Time 600 ns Dimensions   Height 4.53 mm Length 8.89 mm Width 8.89 mm Compliance   Lead Free Contains Lead RoHS Compliant The ADG211A is a monolithic CMOS device comprising four independently selectable switches. They are designed on an enhanced LC2MOS process which gives an increased signal handling capability of ±15 V. These switches also feature high switching speeds and low RON. The ADG211A switches are turned on with a logic low on the appropriate control input. Each switch conducts equally well in both directions when ON and each has an input signal range that extends to the supplies. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.

ADG333ABR-REEL

ADG333ABR-REEL

Data sheet Physical   Case/Package SOIC W Number of Pins 20 Technical   Dual Supply Voltage 15 V Interface Parallel Max Dual Supply Voltage 20 V Max Operating Temperature 85 °C Max Power Dissipation 3.77 mW Max Supply Current 250 µA Max Supply Voltage 30 V Min Dual Supply Voltage 3 V Min Operating Temperature -40 °C Min Supply Voltage 3 V Number of Bits 4 Number of Channels 4 Number of Circuits 4 Number of Inputs 4 Number of Outputs 8 On-State Resistance 45 Ω Operating Supply Current 50 nA Operating Supply Voltage 12 V Supply Type Single , Dual Test Frequency 1 MHz Throw Configuration SPDT Turn-Off Delay Time 145 ns Turn-On Delay Time 175 ns Compliance   Lead Free Contains Lead Radiation Hardening No RoHS Compliant The ADG333A is a monolithic complementary metal-oxide semiconductor (CMOS) device comprising four independently selectable single-pole, double-throw (SPDT) switches. It is designed on a linear compatible CMOS (LC2MOS) process, which provides low power dissipation yet achieves a high switching speed and a low on resistance. The on-resistance profile is very flat over the full analog input range, ensuring good linearity and low distortion when switching audio signals. High switching speed also makes the device suitable for video signal switching. CMOS construction ensures ultralow power dissipation, making the device ideally suited for portable, battery-powered instruments. When they are on, each switch conducts equally well in both directions and has an input signal range that extends to the power supplies. In the off condition, signal levels up to the supplies are blocked. All switches exhibit break-before-make switching action for use in multiplexer applications. Low charge inject is inherent in the design. Product Highlights Extended signal range. The ADG333A is fabricated on an enhanced LC2MOS process, giving an increased signal range which extends to the supply rails. Low power dissipation. Low RON. Single-supply operation. For applications in which the analog signal is unipolar, the ADG333A can be operated from a single rail power supply. The device is fully specified with a single 12 V supply. Applications Audio and video switching Battery-powered systems Test equipment Communication systems

AD420ARZ-32

AD420ARZ-32

Data sheet Physical   Case/Package SOIC Contact Plating Tin Number of Pins 24 Technical   Conversion Rate 400 S/s Differential Output No Integral Nonlinearity (INL) 0.012 LSB Interface SPI , Serial Max Input Voltage 4.995 V Max Operating Temperature 85 °C Max Output Voltage 9.5 V Max Power Dissipation 176 mW Max Supply Voltage 32 V Min Input Voltage 5.005 V Min Operating Temperature -40 °C Min Output Voltage 29.5 V Min Supply Voltage 12 V Nominal Supply Current 4.2 mA Number of Bits 16 Number of Channels 1 Number of Converters 1 Number of D/A Converters 1 Number of DAC Channels 1 Number of Outputs 1 Output Type Voltage Polarity Unipolar , Bipolar Reference Voltage 5 V Resolution 16 b Sampling Rate 400 S/s Settling Time 2.5 ms Termination SMD/SMT Dimensions   Height 2.65 mm Length 15.6 mm Width 7.6 mm Compliance   Lead Free Contains Lead REACH SVHC No SVHC Radiation Hardening No RoHS Compliant The AD420 is a complete digital to current loop output converter, designed to meet the needs of the industrial control market. It provides a high precision, fully integrated, low cost single-chip solution for generating current loop signals in a compact 24-pin SOIC or PDIP package. The output current range can be programmed to 4 mA-20 mA, 0 mA-20 mA or an overrange function of 0 mA-24 mA. The AD420 can alternatively provide a voltage output from a separate pin that can be configured to provide 0 V-5 V, 0 V-10 V, ±5 V or ±10 V with the addition of a single external buffer amplifier. The 3.3 M Baud serial input logic design minimizes the cost of galvanic isolation and allows for simple connection to commonly used microprocessors. It can be used in three-wire or asynchronous mode and a serial-out pin is provided to allow daisy chaining of multiple DACs on the current loop side of the isolation barrier. The AD420 uses sigma-delta (SD) DAC technology to achieve 16-bit monotonicity at very low cost. Full-scale settling to 0.1% occurs within 3 ms. The only external components that are required (in addition to normal transient protection circuitry) are three low cost capacitors which are used in the DAC output filter. If the AD420 is going to be used at extreme temperatures and supply voltages, an external output transistor can be used to minimize power dissipation on the chip via the "BOOST" pin. The FAULT DETECT pin signals when an open circuit occurs in the loop. The on-chip voltage reference can be used to supply a precision +5 V to external components in addition to the AD420 or, if the user desires temperature stability exceeding 25 ppm/°C, an external precision reference such as the AD586 can be used as the reference. The AD420 is available in a 24-pin SOIC and PDIP over the industrial temperature range of -40°C to +85°C.

AD5206B10/AD5206

AD5206B10/AD5206

Data sheet Physical   Case/Package SOIC W Contact Plating Tin Mount Surface Mount Number of Pins 24 Technical   -3db Bandwidth 721 kHz Composition Potentiometer Dual Supply Voltage 2.5 V Interface SPI Max Dual Supply Voltage 2.7 V Max Operating Temperature 85 °C Max Supply Current 12 µA Max Supply Voltage 5.5 V Memory Type Volatile Min Dual Supply Voltage 2.3 V Min Operating Temperature -40 °C Min Supply Voltage 2.7 V Nominal Supply Current 12 µA Number of Circuits 6 Number of Elements 6 Number of Positions 256 Number of Taps 256 Operating Supply Current 12 µA Quiescent Current 12 µA Resistance 50 kΩ Taper Linear Temperature Coefficient 700 ppm/°C Tolerance 30% Dimensions   Height 2.65 mm Length 15.6 mm Width 7.6 mm Compliance   Lead Free Contains Lead REACH SVHC No SVHC RoHS Compliant The AD5204/AD5206 provide 4-/6-channel, 256-position digitally controlled variable resistor (VR) devices. These devices perform the same electronic adjustment function as a potentiometer or variable resistor. Each channel of the AD5204/ AD5206 contains a fixed resistor with a wiper contact that taps the fixed resistor value at a point determined by a digital code loaded into the SPI-compatible serial-input register. The resistance between the wiper and either endpoint of the fixed resistor varies linearly with respect to the digital code transferred into the VR latch. The variable resistor offers a completely programmable value of resistance between the A terminal and the wiper or the B terminal and the wiper. The fixed A-to-B terminal resistance of 10 kO, 50 kO, or 100 kO has a nominal temperature coefficient of 700 ppm/°C. Each VR has its own VR latch that holds its programmed resistance value. These VR latches are updated from an internal serial-to-parallel shift register that is loaded from a standard 3-wire serial-input digital interface. Eleven data bits make up the data-word clocked into the serial input register. The first three bits are decoded to determine which VR latch is loaded with the last eight bits of the data-word when the CS strobe is returned to logic high. A serial data output pin at the opposite end of the serial register (AD5204 only) allows simple daisy chaining in multiple VR applications without requiring additional external decoding logic. An optional reset (PR) pin forces all the AD5204 wipers to the midscale position by loading 0x80 into the VR latch. The AD5204/AD5206 are available in the 24-lead surface-mount SOIC, TSSOP, and PDIP packages. The AD5204 is also available in a 32-lead, 5 mm × 5 mm LFCSP package. All parts are guaranteed to operate over the extended industrial temperature range of -40°C to +85°C. For additional single-, dual-, and quad-channel devices, see the AD8400/AD8402/AD8403 data sheets. Applications Mechanical potentiometer replacement Instrumentation: gain, offset adjustment Programmable voltage-to-current conversion Programmable filters, delays, time constants Line impedance matching Data Sheet, Rev. B, 5/09

OP295GSZ

OP295GSZ

Data sheet Physical   Case/Package R Number of Pins 8 Technical   Common Mode Rejection Ratio 110 dB Dual Supply Voltage 15 V Gain Bandwidth Product 75 kHz Input Bias Current 20 nA Input Offset Voltage (Vos) 500 µV Max Dual Supply Voltage 18 V Max Operating Temperature 125 °C Max Supply Voltage 36 V Min Dual Supply Voltage 1.5 V Min Operating Temperature -40 °C Min Supply Voltage 3 V Nominal Supply Current 300 µA Number of Amplifiers 2 Number of Channels 2 Number of Circuits 2 Number of Elements 2 Operating Supply Current 350 µA Operating Supply Voltage 28 V Output Current per Channel 25 mA Power Supply Rejection Ratio (PSRR) 110 dB Quiescent Current 150 µA Slew Rate 0.03 V/µs Unity Gain Bandwidth Product 75 kHz Voltage Gain 140 dB Compliance   Lead Free Contains Lead Radiation Hardening No RoHS Compliant Rail-to-rail output swing combined with dc accuracy are the key features of the OP495 quad and OP295 dual CBCMOS operational amplifiers. By using a bipolar front end, lower noise and higher accuracy than those of CMOS designs have been achieved. Both input and output ranges include the negative supply, providing the user with zero-in/zero-out capability. For users of 3.3 V systems such as lithium batteries, the OP295/OP495 are specified for 3 V operation. Maximum offset voltage is specified at 300 µV for 5 V operation, and the open-loop gain is a minimum of 1000 V/mV. This yields performance that can be used to implement high accuracy systems, even in single-supply designs. The ability to swing rail-to-rail and supply 15 mA to the load makes the OP295/OP495 ideal drivers for power transistors and H bridges. This allows designs to achieve higher efficiencies and to transfer more power to the load than previously possible without the use of discrete components. For applications such as transformers that require driving inductive loads, increases in efficiency are also possible. Stability while driving capacitive loads is another benefit of this design over CMOS rail-to-rail amplifiers. This is useful for driving coax cable or large FET transistors. The OP295/OP495 are stable with loads in excess of 300 pF. The OP295 and OP495 are specified over the extended indus-trial (-40°C to +125°C) temperature range. The OP295 is available in 8-lead PDIP and 8-lead SOIC_N surface-mount packages. The OP495 is available in 14-lead PDIP and 16-lead SOIC_W surface-mount packages. Applications Battery-operated instrumentation Servo amplifiers Actuator drives Sensor conditioners Power supply control

CD4053BF3A

CD4053BF3A

Data sheet  Physical   Case/Package CDIP Contact Plating Tin , Lead Mount Through Hole Number of Pins 16 Technical   Max Dual Supply Voltage 9 V Max Operating Temperature 125 °C Max Supply Voltage 20 V Min Dual Supply Voltage 2.5 V Min Operating Temperature -55 °C Min Supply Voltage 3 V Number of Channels 3 Number of Inputs 6 Number of Outputs 3 Compliance   Lead Free Contains Lead Radiation Hardening No RoHS Compliant CMOS Triple 2-Channel Analog Multiplexer/Demultiplexer with Logic-Level Conversion 16-CDIP -55 to 125

D8031AH

D8031AH

CDIP 40/I°/8-BIT CONTROL-ORIENTED MICROCONTROLLERS

MAX17102ETM+T

MAX17102ETM+T

Data sheet  Physical   Mount Surface Mount Number of Pins 48 Technical   Max Operating Temperature 85 °C Min Operating Temperature -40 °C Compliance   RoHS Compliant

UCC2976PWG4

UCC2976PWG4

Physical   Case/Package TSSOP Mount Surface Mount Number of Pins 8 Weight 0.001411 oz Technical   Frequency 105 kHz Max Frequency 105 kHz Max Operating Temperature 85 °C Max Supply Current 2.5 mA Max Supply Voltage 13.5 V Min Operating Temperature -40 °C Min Supply Voltage 3 V Nominal Supply Current 2.5 mA Operating Supply Current 1 mA Dimensions   Height 1.15 mm Length 3 mm Width 4.4 mm Compliance   Lead Free Contains Lead Radiation Hardening No RoHS Compliant Multi-topology Piezoelectric Transformer Controller 8-TSSOP

D3625A

D3625A

IC Interface 3625/D3625A1 INTEL memory prog. non volatille KX4=1 DIP

SNJ54HCT240J

SNJ54HCT240J

Data sheet  Physical   Case/Package CDIP Contact Plating Tin , Lead Mount Through Hole Number of Pins 20 Technical   High Level Output Current -6 mA Logic Function Buffer Low Level Output Current 6 mA Max Operating Temperature 125 °C Max Supply Voltage 5.5 V Min Operating Temperature -55 °C Min Supply Voltage 4.5 V Number of Bits 8 Number of Channels 8 Number of Elements 2 Number of Inputs 8 Number of Outputs 8 Operating Supply Voltage 5 V Polarity Inverting Propagation Delay 79 ns Quiescent Current 8 µA Compliance   Lead Free Contains Lead Radiation Hardening No RoHS Compliant    Octal Buffers And Line Drivers CMOS Logic With 3-State Outputs 20-CDIP -55 to 125

TMS27C25615JL

TMS27C25615JL

Physical   Case/Package CDIP Compliance   Lead Free Contains Lead RoHS Non-Compliant 262 144-Bitprogrammable ead-Only Memory 28-CDIP 0 to 70
