Part No .:

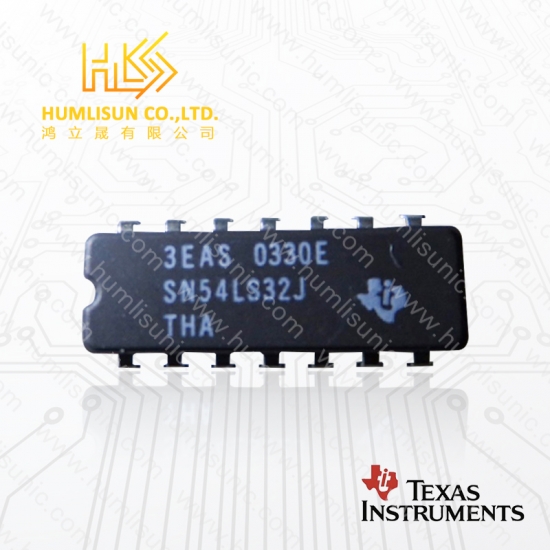

SN54LS32JManufacturer:
Texas InstrumentsDescription:
ICRemark:
new originLast Updated:
2025/10/27
|
Physical
|
|
| Case/Package | CDIP |
| Mount | Through Hole |
| Number of Pins | 14 |
|
Technical
|
|
| High Level Output Current | -400 µA |
| Logic Function | OR |
| Low Level Output Current | 4 mA |
| Max Operating Temperature | 125 °C |
| Max Supply Voltage | 5.5 V |
| Min Operating Temperature | -55 °C |
| Min Supply Voltage | 4.5 V |
| Number of Bits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5 V |
| Output Type | TTL |
| Propagation Delay | 22 ns |
| Turn-On Delay Time | 22 ns |
|
Compliance
|
|
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
