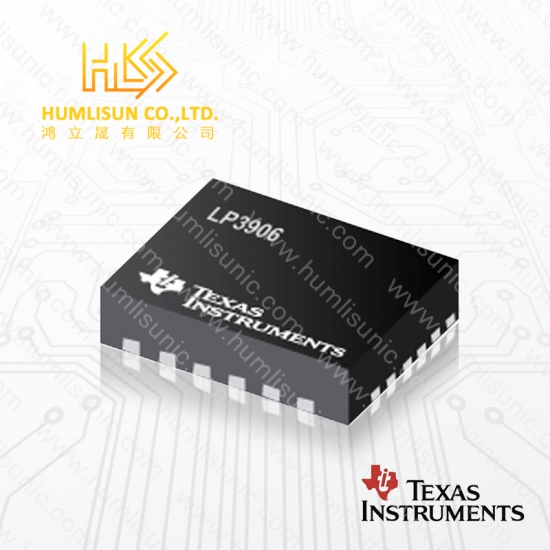

Part No .:
LP3906SQE-VPFP/NOPBManufacturer:
Texas InstrumentsDescription:
ICRemark:
new originLast Updated:
2025/11/03
|
Physical
|
|
| Mount | Surface Mount |
| Number of Pins | 24 |
|
Technical
|
|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Operating Supply Current | 60 µA |
| Quiescent Current | 30 µA |
| Switching Frequency | 2 MHz |
|
Dimensions
|
|
| Length | 5 mm |
|
Compliance
|
|
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
Dual High-Current Step-Down DC/DC and Dual Linear Regulator with I2C Compatible Interface 24-WQFN
