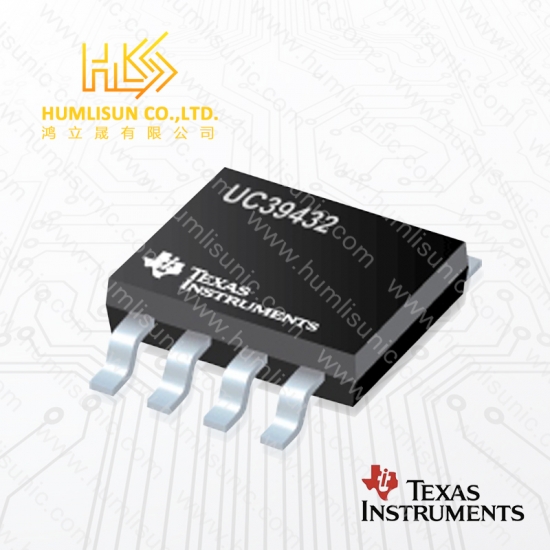

Part No .:
UC39432NG4Manufacturer:
Texas InstrumentsDescription:
ICRemark:
new originLast Updated:
2025/11/29
|
Physical
|
|
| Case/Package | P |
| Number of Pins | 8 |
| Weight | 0.018646 oz |
|
Technical
|
|
| Max Operating Temperature | 70 °C |
| Max Output Current | 100 mA |
| Max Supply Voltage | 36 V |
| Min Operating Temperature | 0 °C |
| Min Supply Voltage | 2.2 V |
| Operating Supply Current | 500 µA |
| Output Current | 100 mA |
| Reference Voltage | 1.3 V |
|
Dimensions
|
|
| Height | 4.57 mm |
| Length | 9.81 mm |
| Width | 6.35 mm |
|
Compliance
|
|
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
Power Supply Support Precision Analog Controller
