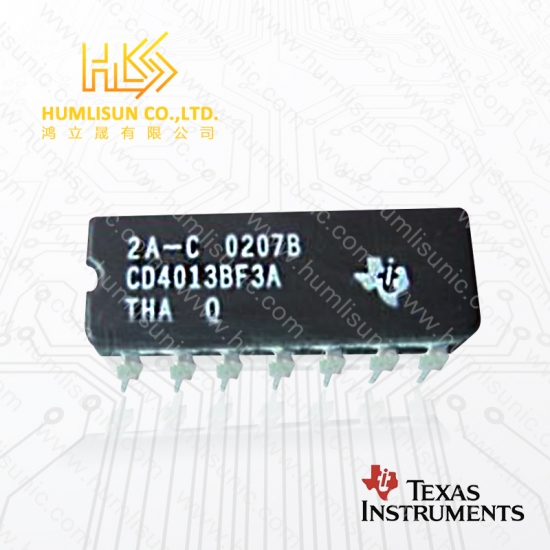

Part No .:
CD4013BF3AManufacturer:
Texas InstrumentsDescription:
ICRemark:
new originLast Updated:
2025/10/27
|
Physical
|
|
| Case/Package | CDIP |
| Contact Plating | Tin , Lead |
| Mount | Through Hole |
| Number of Pins | 14 |
|
Technical
|
|
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 24 MHz |
| High Level Output Current | -4.2 mA |
| Logic Function | D-Type |
| Low Level Output Current | 4.2 mA |
| Max Frequency | 24 MHz |
| Max Operating Temperature | 125 °C |
| Max Supply Voltage | 18 V |
| Min Operating Temperature | -55 °C |
| Min Supply Voltage | 3 V |
| Number of Bits | 2 |
| Number of Elements | 2 |
| Number of Outputs | 4 |
| Polarity | Non-Inverting |
| Propagation Delay | 400 ns |
| Quiescent Current | 20 µA |
| Turn-On Delay Time | 400 ns |
|
Compliance
|
|
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
