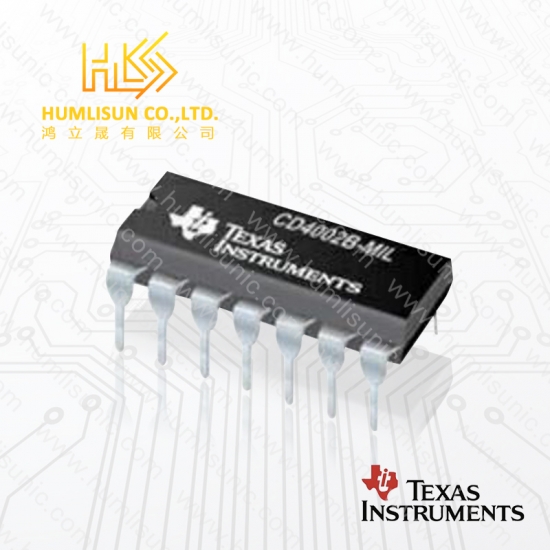

Part No .:
CD4002BF3AManufacturer:
Texas InstrumentsDescription:
ICRemark:
new originLast Updated:
2025/11/29
|
Physical
|
|
| Case/Package | CDIP |
| Contact Plating | Tin , Lead |
| Mount | Through Hole |
| Number of Pins | 14 |
|
Technical
|
|
| High Level Output Current | -4.2 mA |
| Logic Function | NOR |
| Low Level Output Current | 4.2 mA |
| Max Operating Temperature | 125 °C |
| Max Supply Voltage | 18 V |
| Min Operating Temperature | -55 °C |
| Min Supply Voltage | 3 V |
| Number of Bits | 2 |
| Number of Elements | 2 |
| Number of Gates | 2 |
| Number of Outputs | 1 |
| Propagation Delay | 90 ns |
| Quiescent Current | 5 µA |
| Turn-On Delay Time | 90 ns |
|
Compliance
|
|
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
